Update Overview:
Features:
- Feature: Table Attributes in Custom Views
- Improvement: Units of Measurement for Thickness in Custom Views
Bug Fixes:
- Bug: Inconsistent Undo/CTRL-Z Behavior
Release Notes:
Feature: Table Attributes in Custom Views
When configuring a Custom View, you are now able to use Table Attributes to define the the Rules in the Conditions tab.

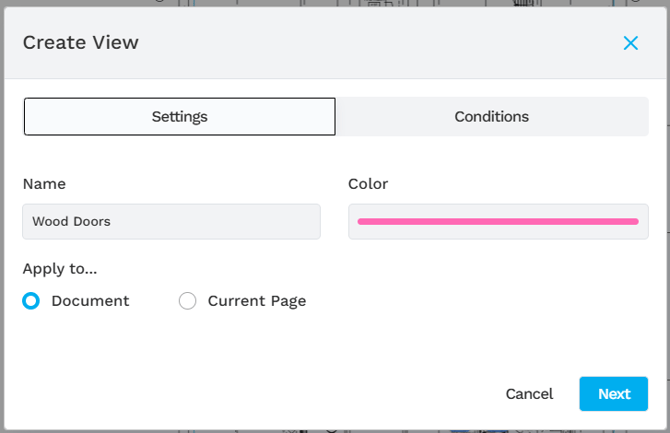

- Name your Custom View and where to apply the View to, and then switch over to the Conditions tab.
.png?width=670&height=433&name=image%20(18).png)

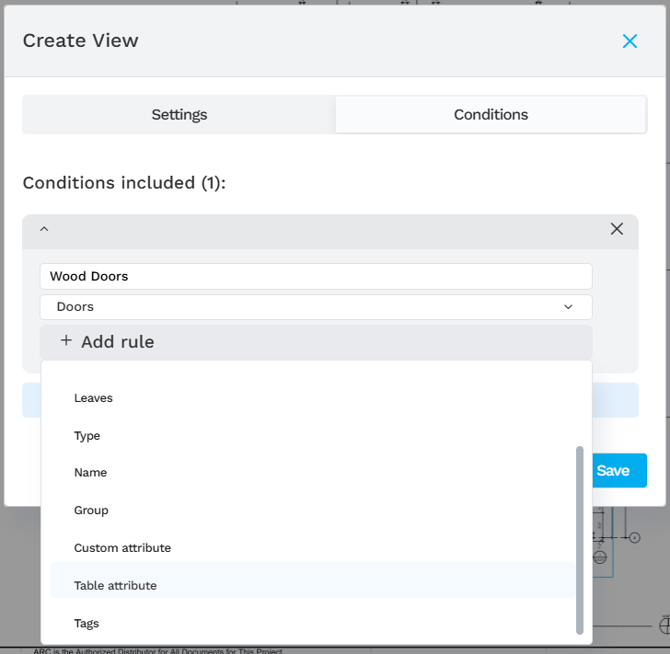

- In the Conditions tab, name your Condition and then click the Add Rule dropdown and select the new Table Attributes option.
.png?width=670&height=654&name=image%20(20).png)

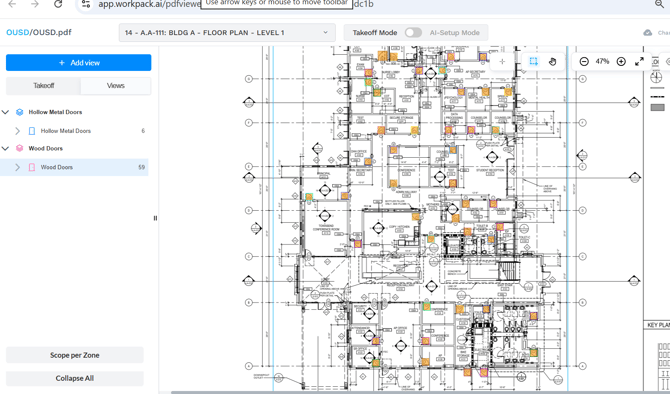

- You can define one or more Table Attributes to refine your rules for a more focused Custom View. Here, we have configured our View to show wood doors of a specific height and width:
.png?width=670&height=394&name=image%20(21).png)
Improvement: Units of Measurement for Thickness in Custom Views

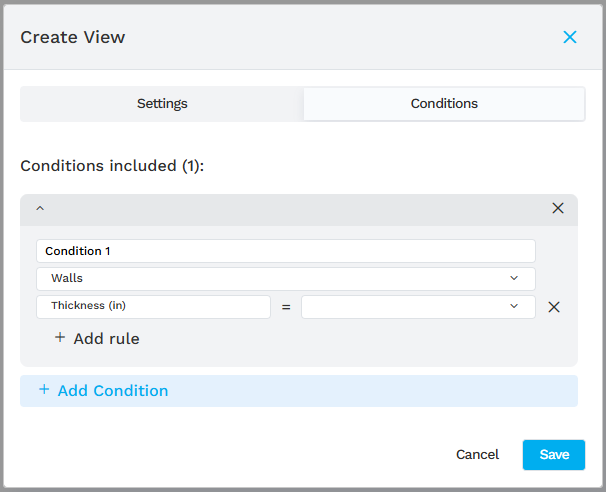

- Wall thickness is measured in inches/centimeters and not feet/meters, unlike the other values, so we have added the 'in/cm’ prompt next to the Thickness option in the rule dropdown.
.png?width=606&height=492&name=image%20(17).png)
Bug Fix - Inconsistent Undo/CTRL-Z Behavior
Previously, the undo feature would sometimes cancel more than one previous action. In this release, we have fixed two examples of such behavior:

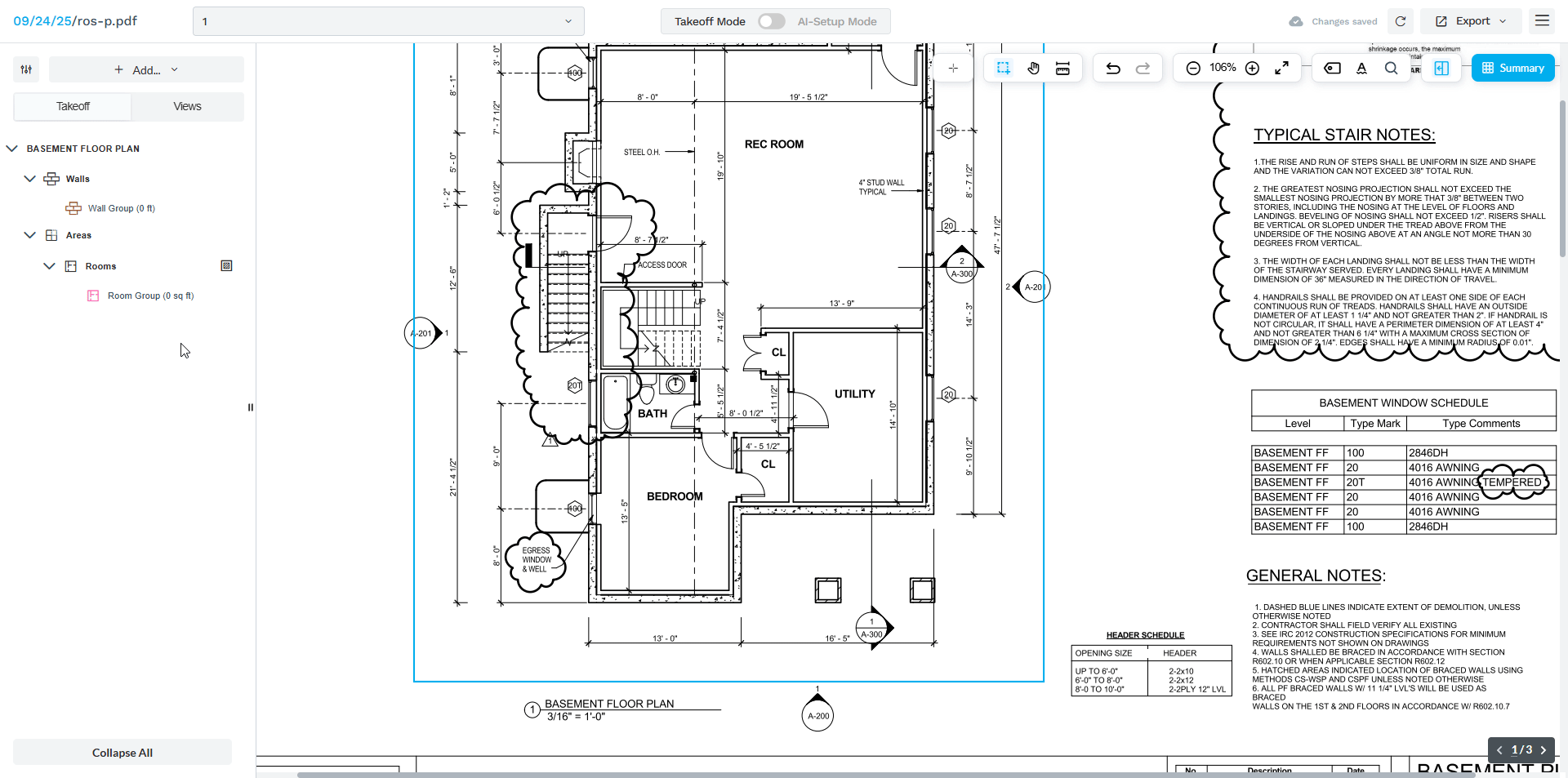

- When adding a room in click-by-click mode, undoing before completing the room would not only remove the last added point, but the whole room, and also the object added before that.

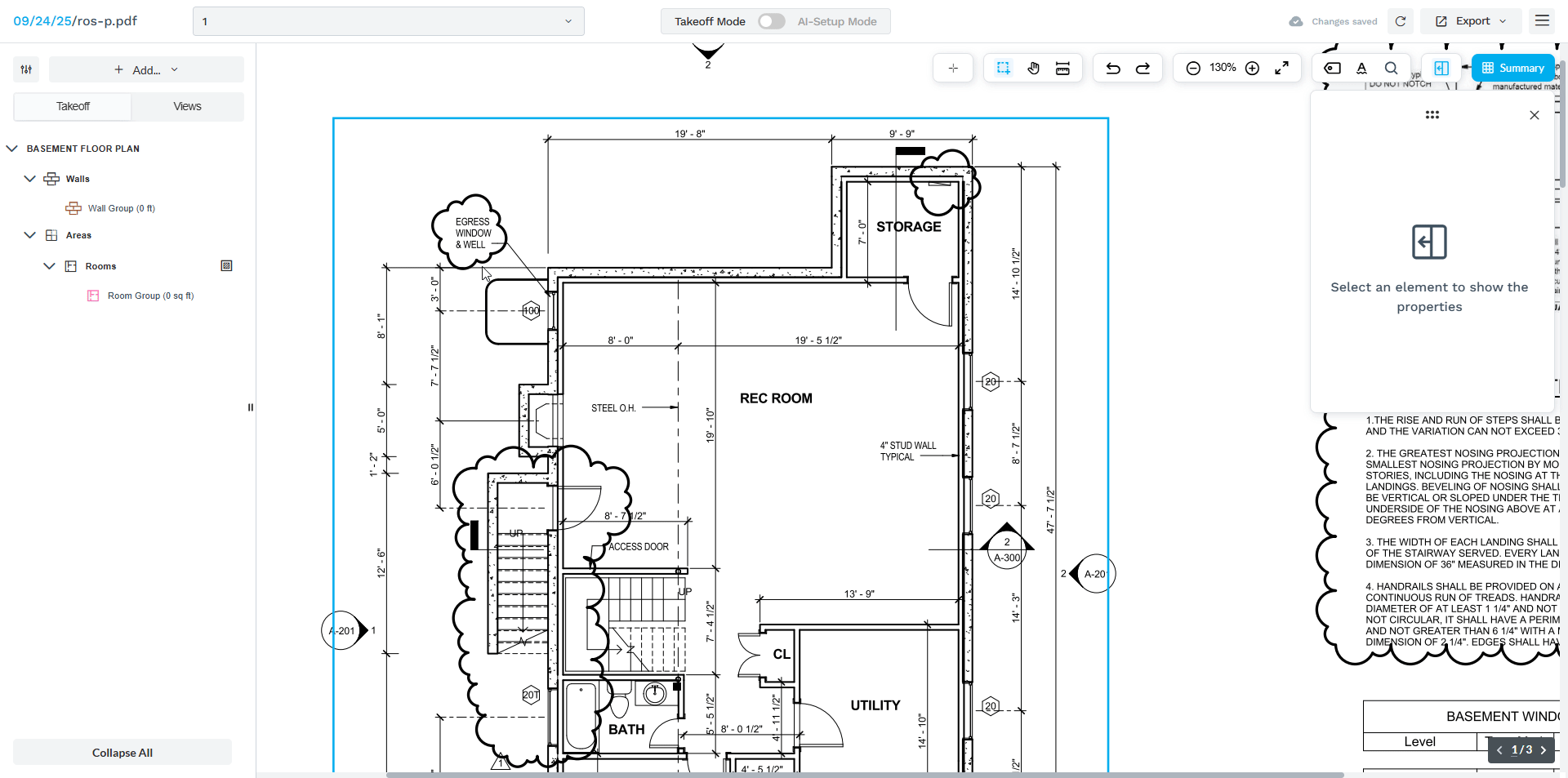

- When quickly adding walls in sequence, undoing would delete not the last added segment, but several at once, and often the entire sequence.
