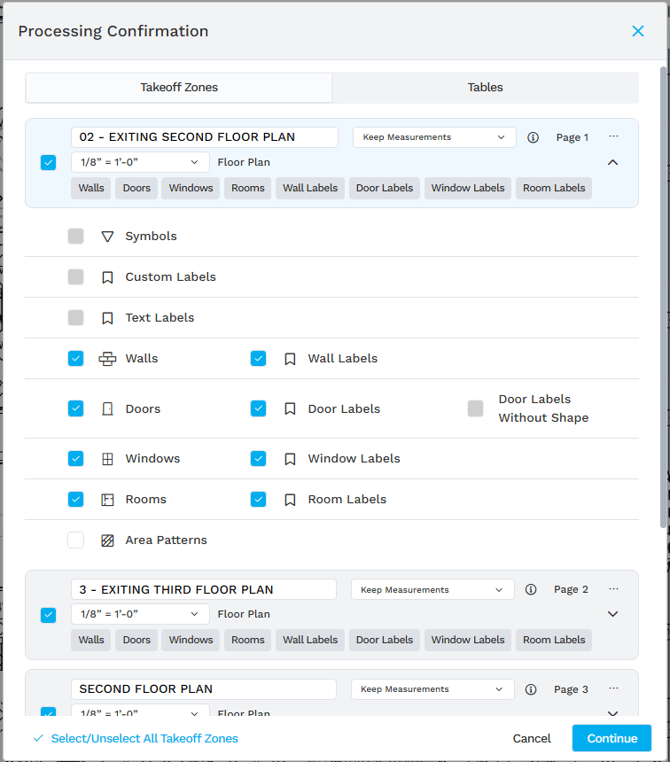

The Processing Confirmation window is opened before the start of AI-Processing. Its purpose is to configure various elements of processing, such as takeoff zones, measurements or tables.
.png?width=670&height=766&name=image%20(14).png)
It has two tabs: Takeoff Zones and Tables tabs
Takeoff Zones tab consists of panels for individual takeoff zones, which have next elements:
- Name of Takeoff Zone
- Keep/Override Measurements dropdown and its tooltip icon
- Page number

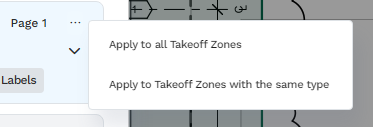

- Apply to Takeoff Zones context menu
.png?width=670&height=228&name=image%20(15).png)
- Checkbox for takeoff zone
- Scale dropdown
- Floor type
- List of active measurements to process
Each takeoff zone panel can be expanded to change active measurements by clicking on panel. Tables tab consists of panels for individual tables that have next elements:
- Name of table
- Type of table
- Detection method dropdown and its tooltip icon
- Page number
.png?width=670&height=633&name=image%20(16).png)
How to work with Processing Confirmation: Example Scenario

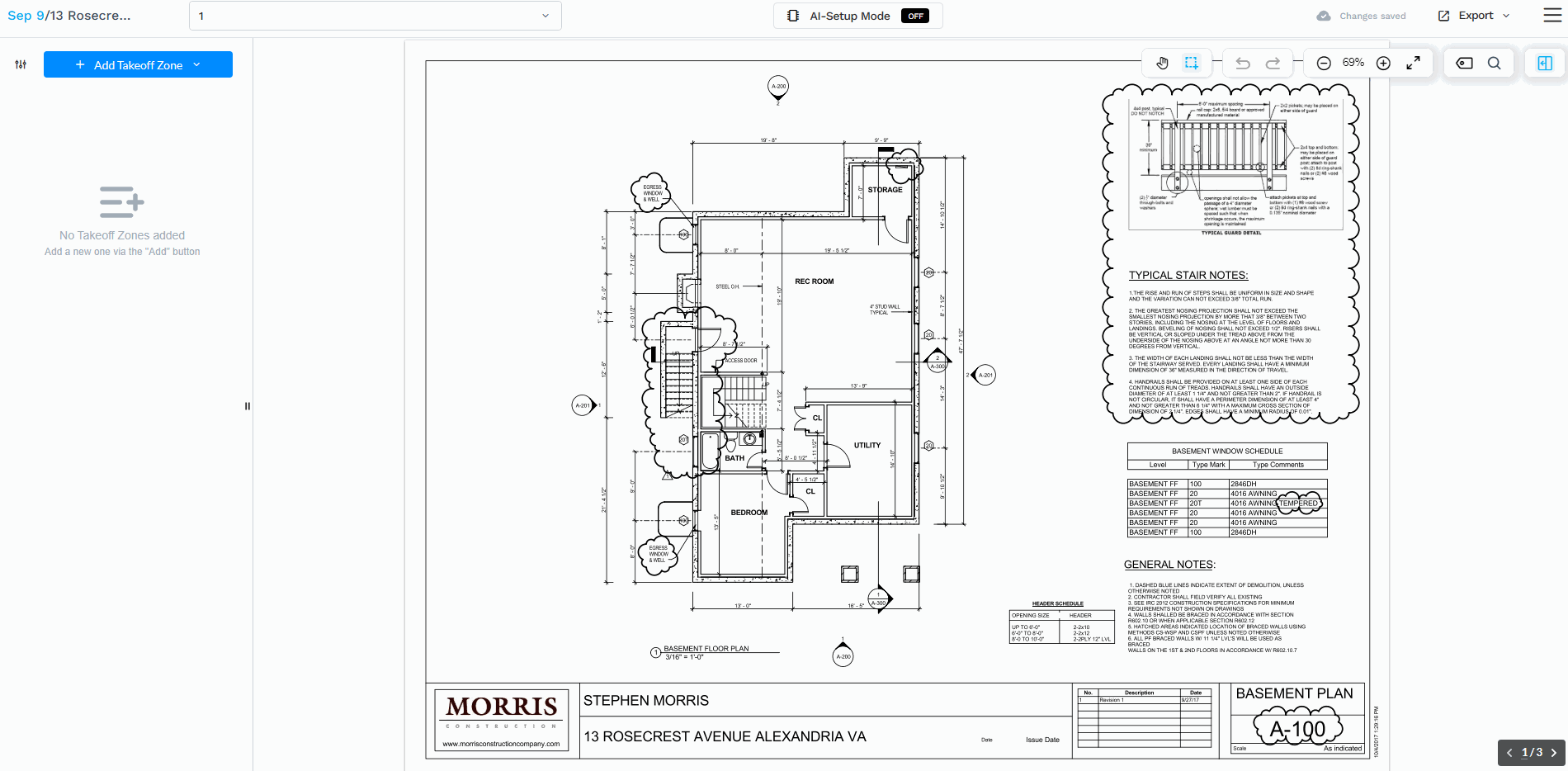

- In AI-Setup mode place a takeoff zone and a table on a sheet and click ‘Process’ button in right corner

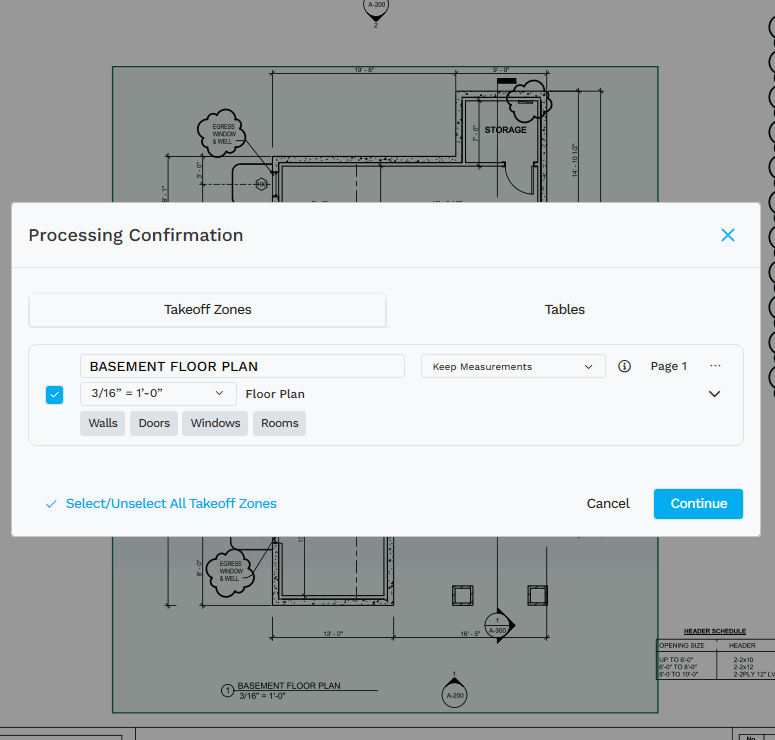

- In opened Processing Confirmation window you can change name and scale of section
- Next step is to change what measurements will be processed
- To change table settings go to Tables tab
- Lastly click Continue to begin AI-Processing
