Workpack: Keynotes

Keynotes feature is a type of table and lable, intended for work with keynotes on sheet. Keynotes is a type of table with value and description referencing special information on sheet

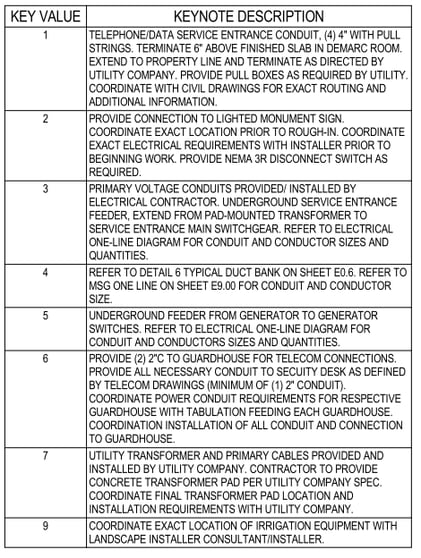

Example of keynotes:

How To Set up and Process Keynotes

Keynotes can be set up in two ways: with or without a Keynote Label Template

Keynotes with Keynote Label Template:

1. In AI-Setup mode in Left Panel select +Add → Label Template → Keynote Label Template

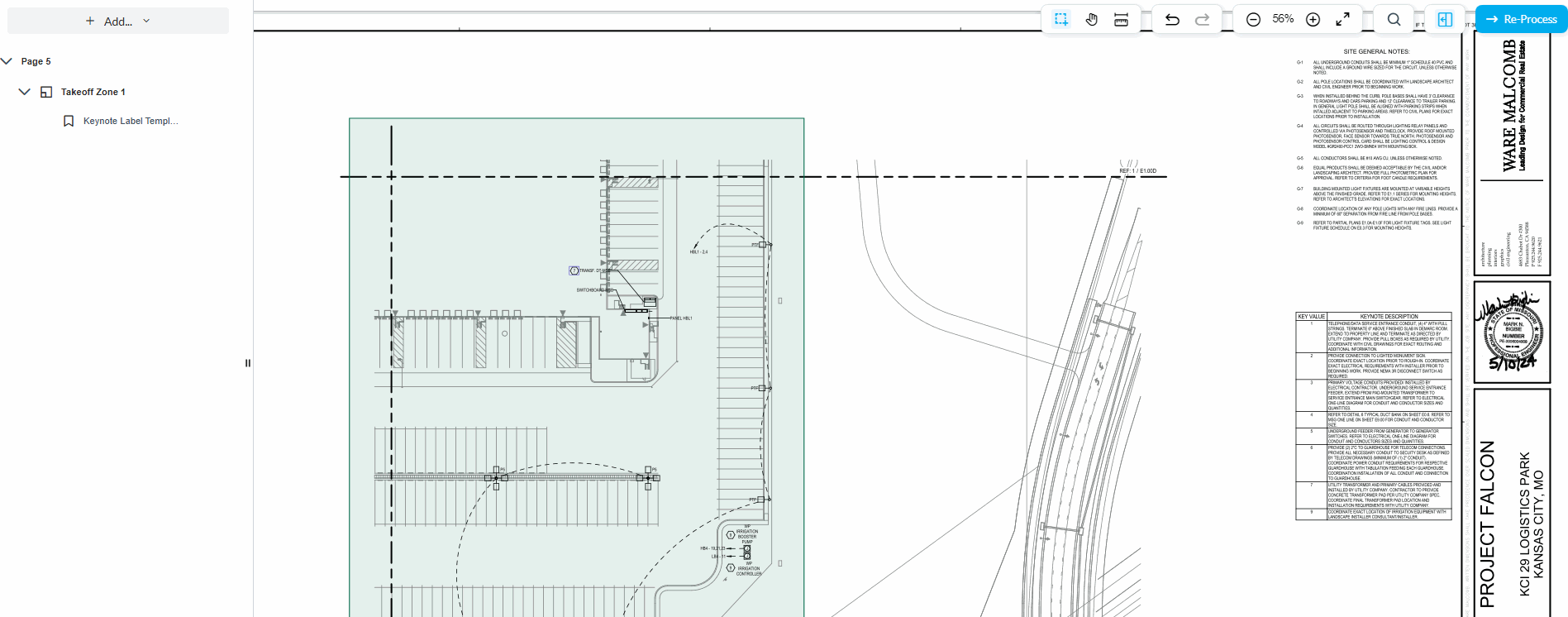

2. Place keynote label on keynote in takeoff zone

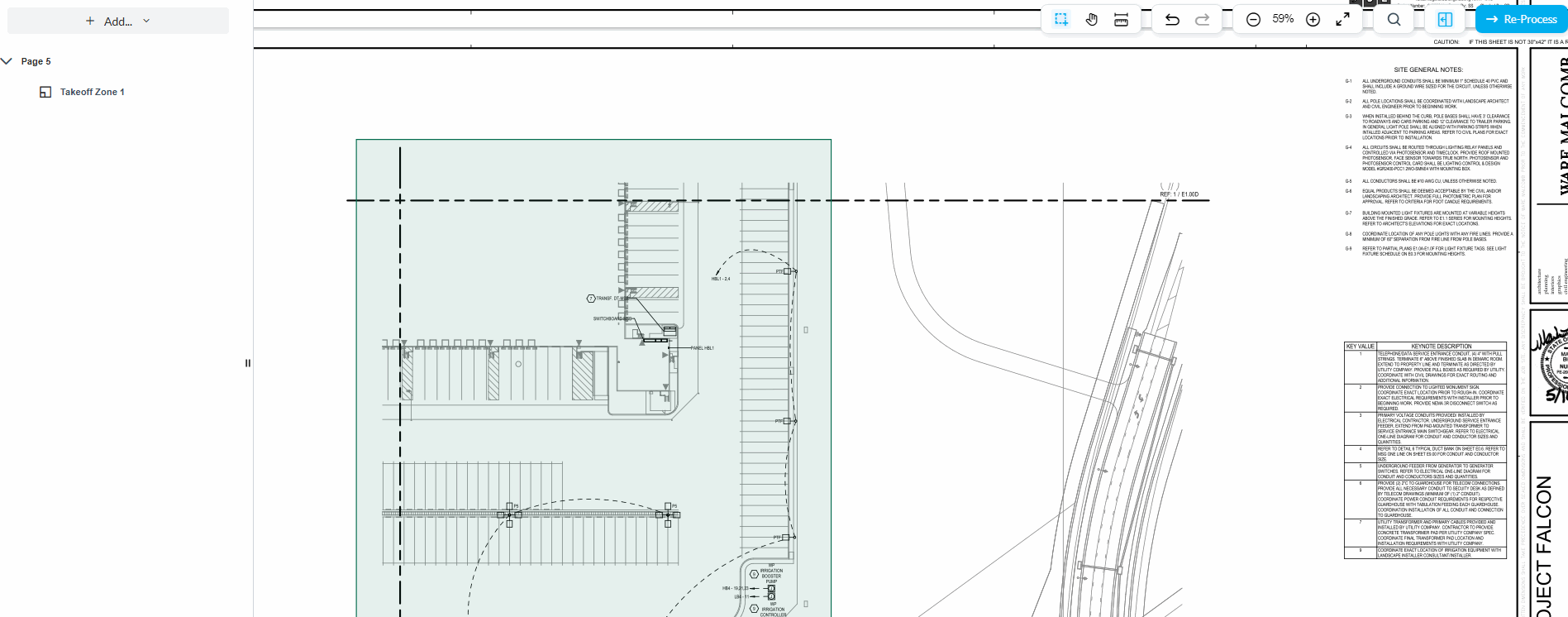

3. In Left Panel select +Add → Tables

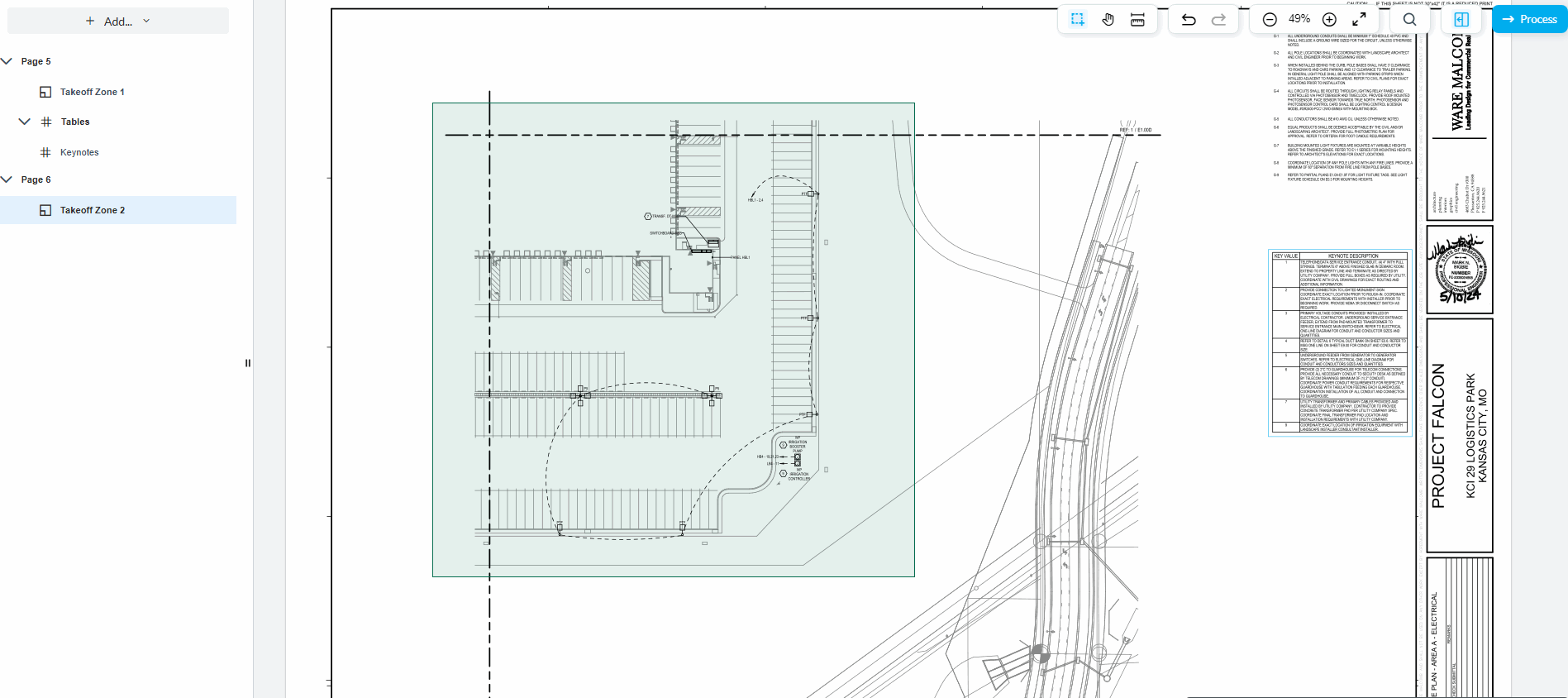

4. Place table on keynotes table on sheet
5. In Table Information, fill in the Name field and set the Table Type to "Keynotes"
6. Select the keynote scope: either apply to the entire document or only to the sheet containing the table

Keynotes without Keynote Label Template:

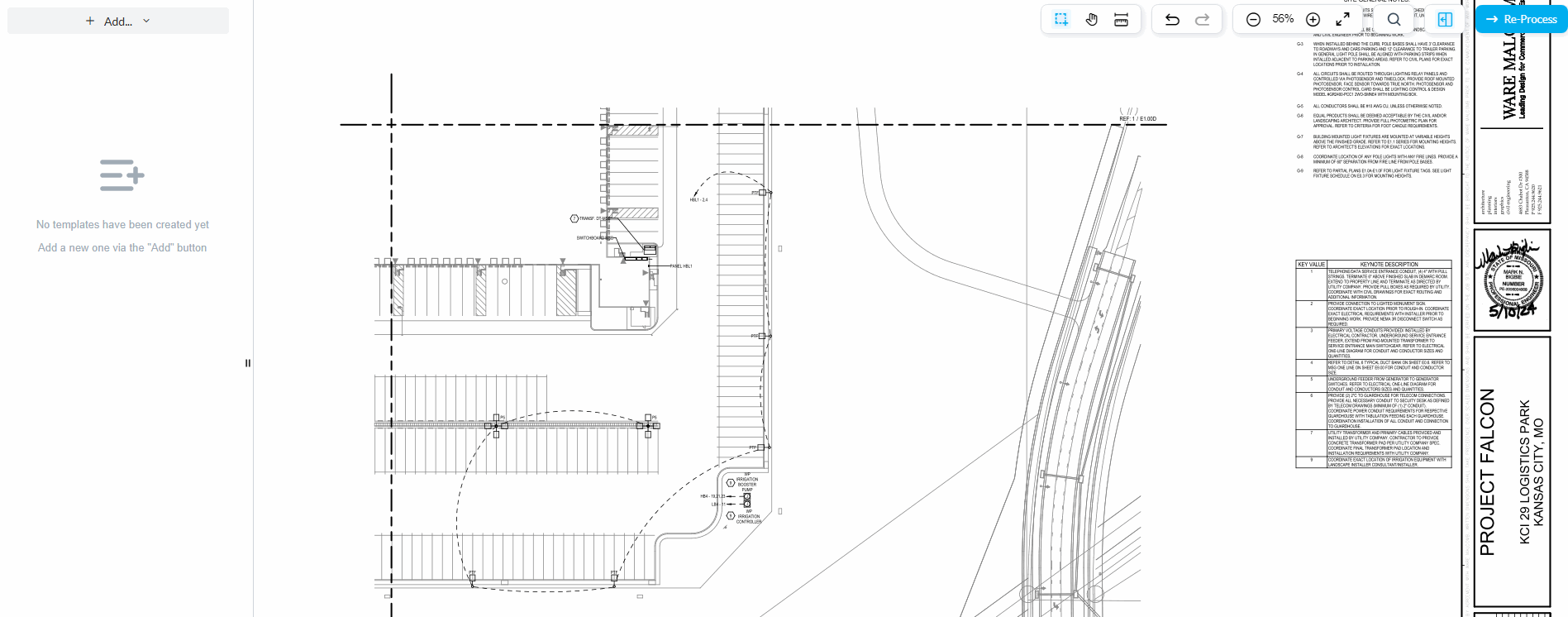

1. In AI-Setup mode in Left Panel select +Add → Tables
2. Place table on keynotes table on sheet
3. In Table Information, fill in the Name field and set the Table Type to "Keynotes"
4. Select the keynote scope: either apply to the entire document or only to the sheet containing the table

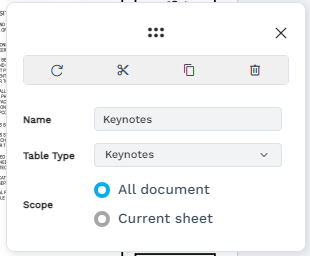

After creating a table, you have option to change parameters of table by selecting it in Left Panel and changing in Properties Panel:

After setting keynotes processing is the same for both with and without Keynote Label Template:

1. Open Processing Confirmation window
2. In Tables tab select tables with Keynotes type
3. Start processing

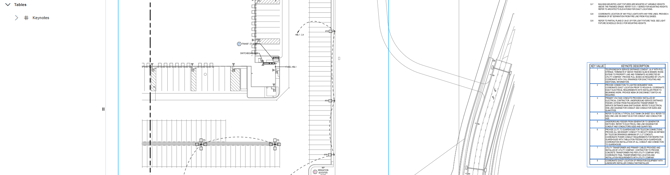

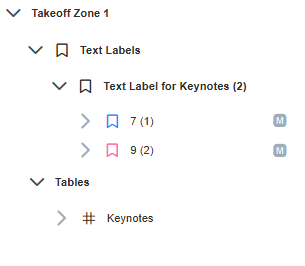

With processing finished keynote table(s) are added to document:

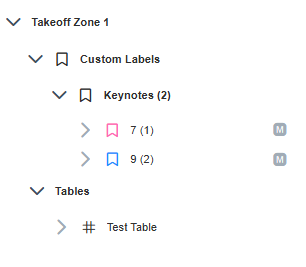

Keynote labels will be located in Custom Labels, if Keynote Label Template was created, and in Text Labels if it was not.

Important Notes

• Keynote Label Templates can be placed only in takeoff zones
• Matching of keynote labels to the table is determined by scope of the keynotes table after processing
