Workpack: Custom Labels

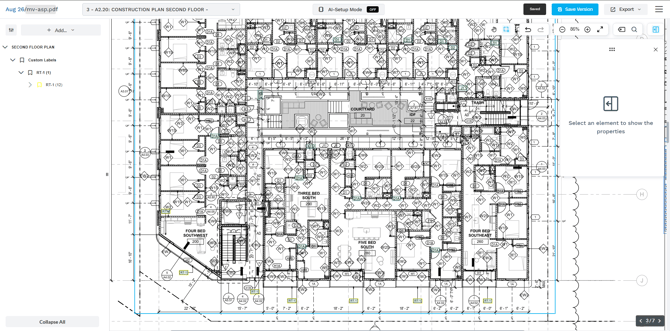

Custom Labels can be used to annotate measurements that are not Wall, Door, Window or Room Labels — such as plumbing or lighting fixture labels.

image (17)

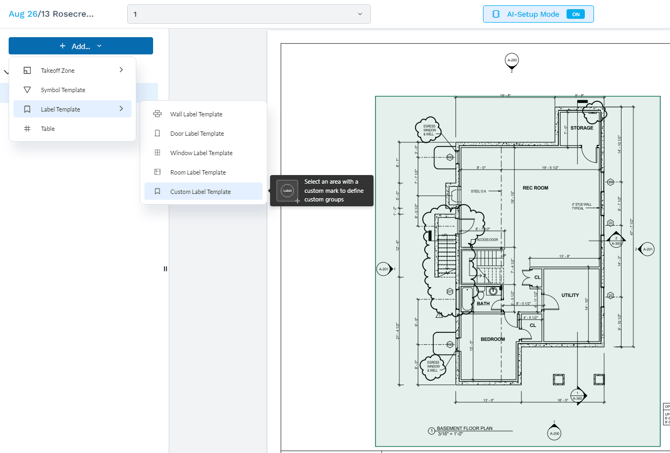

In AI-Setup Mode, Custom Label Templates are placed on the sheet to add Custom Labels after AI processing.

image (18)

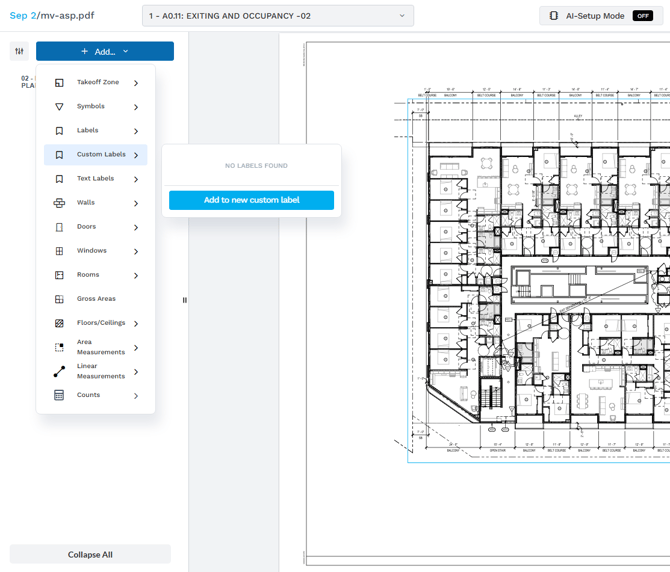

In Takeoff Mode Custom Labels are present as measurements that could be added to sheet via the Add button.

image (19)

How to Add Custom Labels to Project:

In AI-Setup mode:

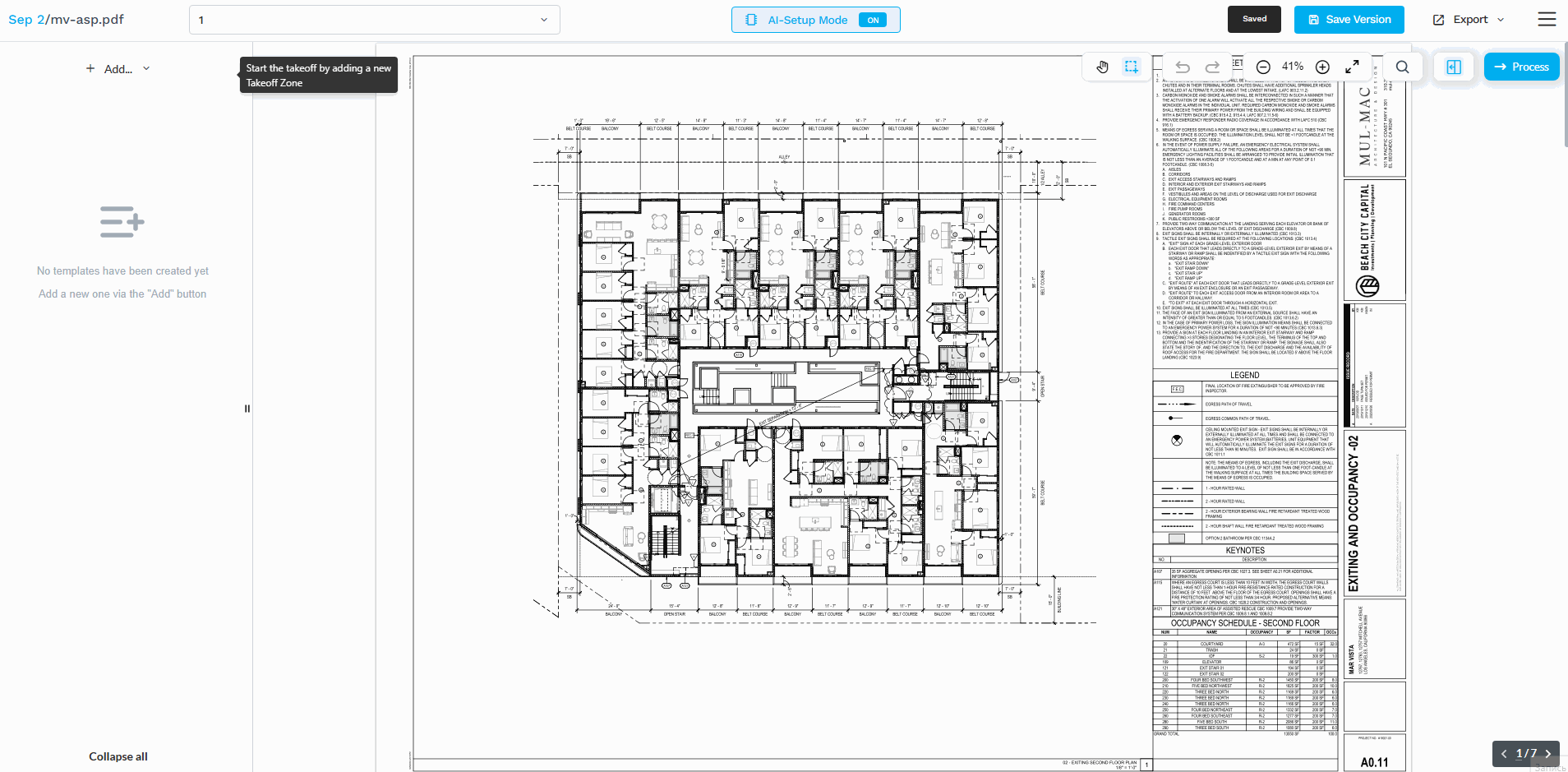

1. Add Takeoff Zone to sheet by +Add button → Takeoff Zone → Auto-Detection or Manual Select.


8

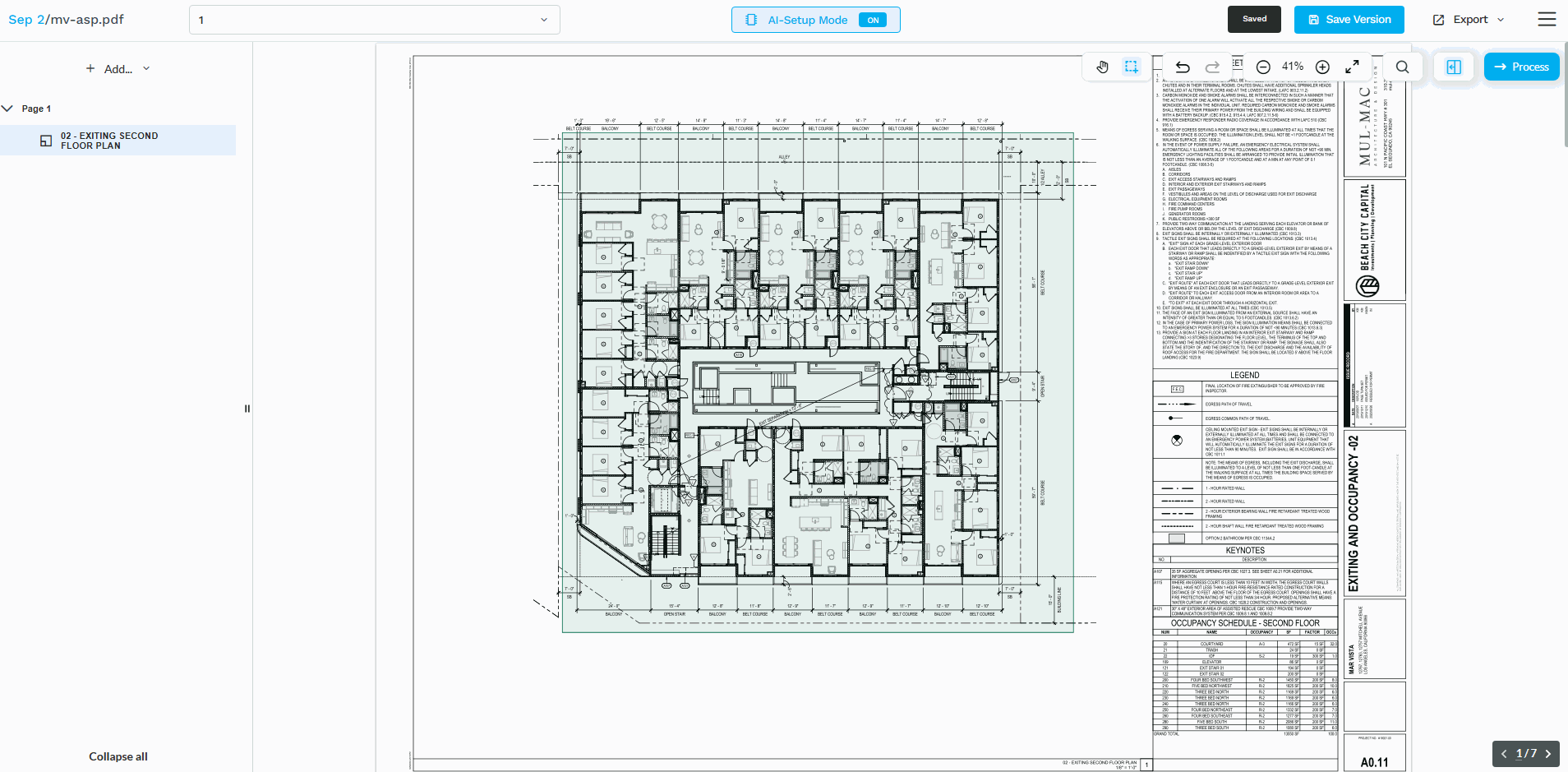

2. Add a Custom Label Template by clicking the +Add button, selecting Label Template → Custom Label Template, and then drawing a rectangle over the label on the sheet.
  • You can change name of new Custom Label Template in Right Panel or in Left Panel

1 (1)

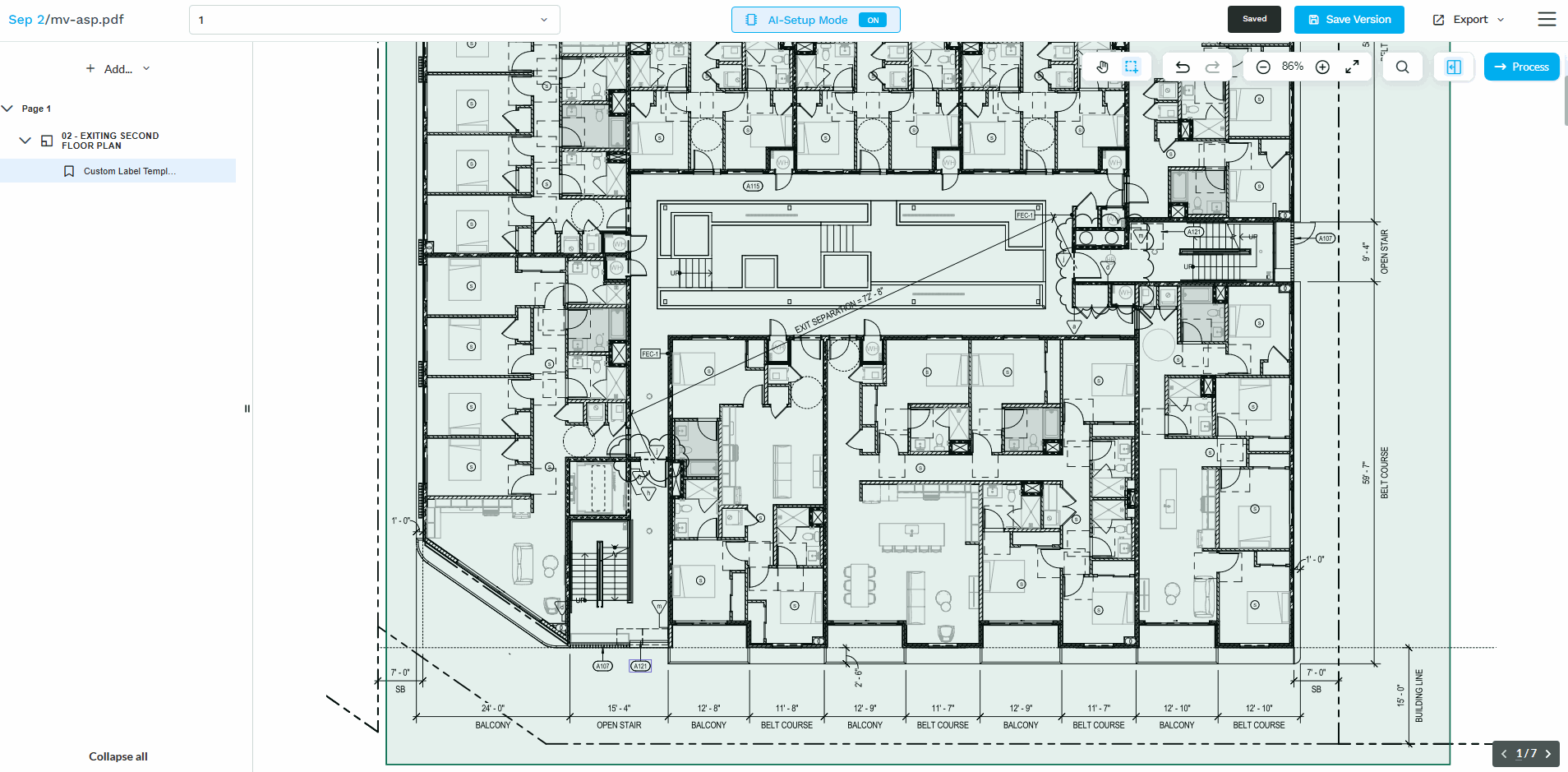

3. In the Processing Confirmation window, select "Custom Labels," then proceed with the AI processing of the document

2

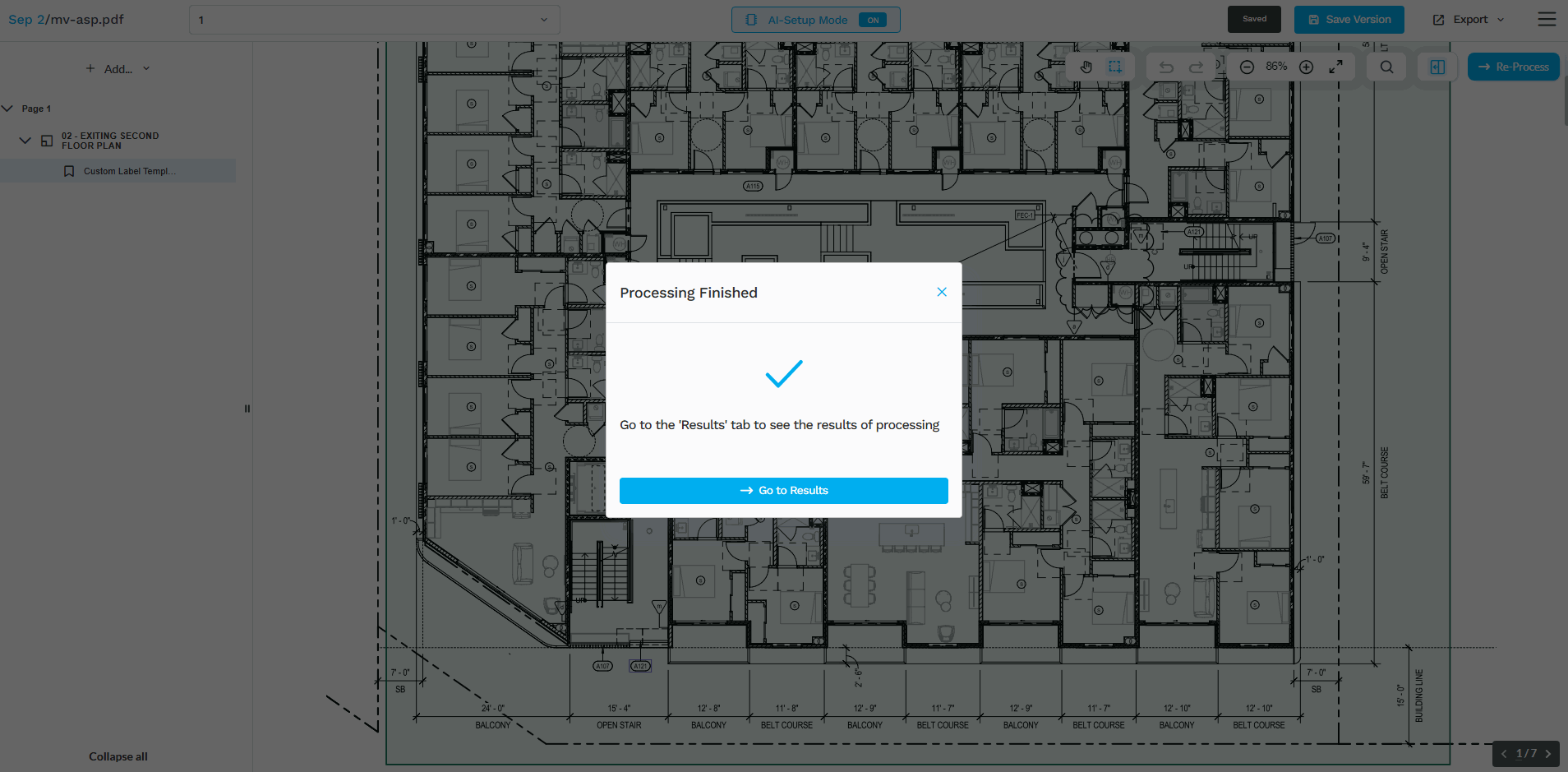

4. After processing is finished, Custom Labels will be added to the sheet

35457

In Takeoff mode:

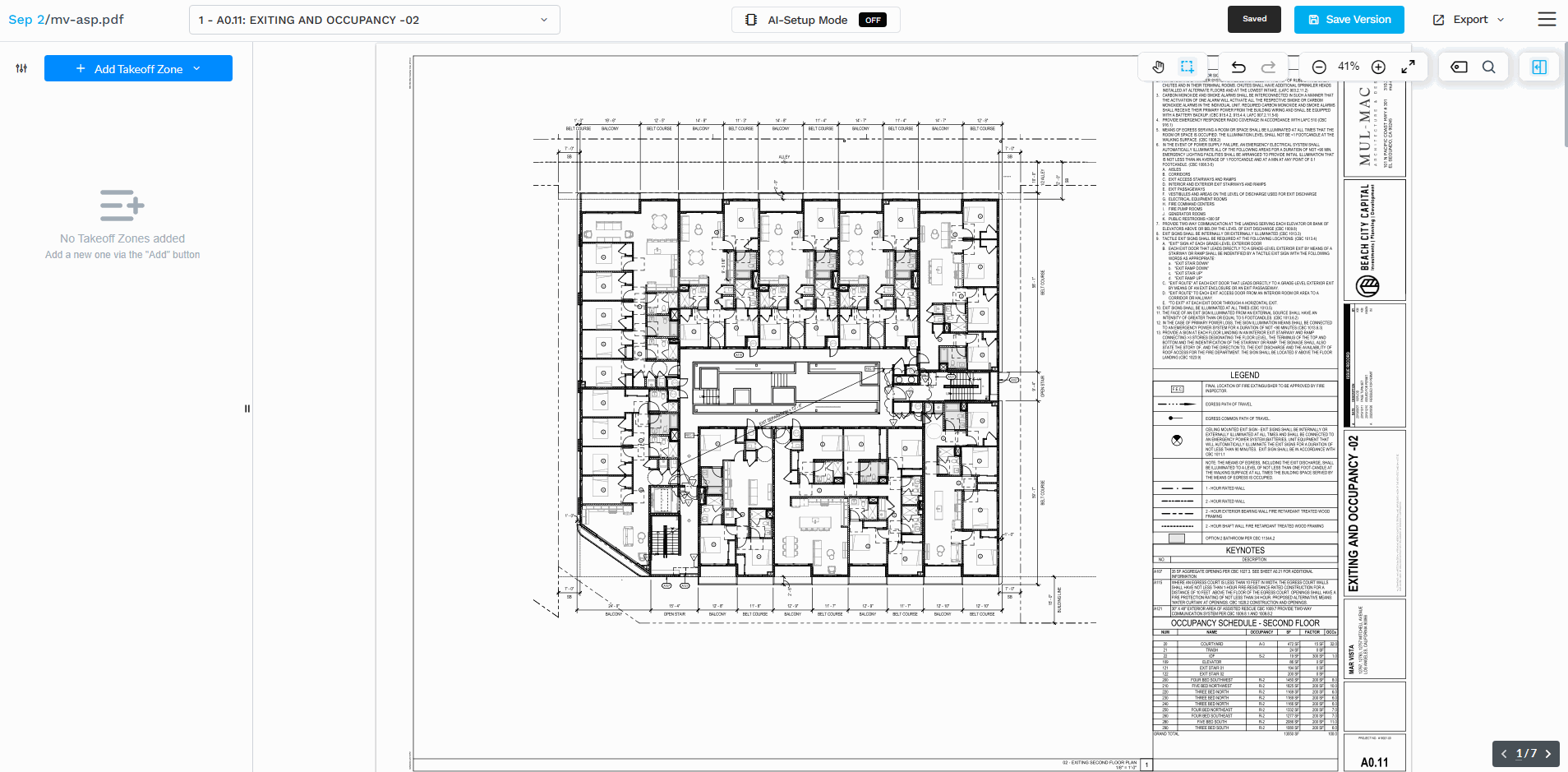

1. Add Takeoff Zone to sheet by +Add button → Takeoff Zone → Auto-Detection or Manual Select


4 (1)

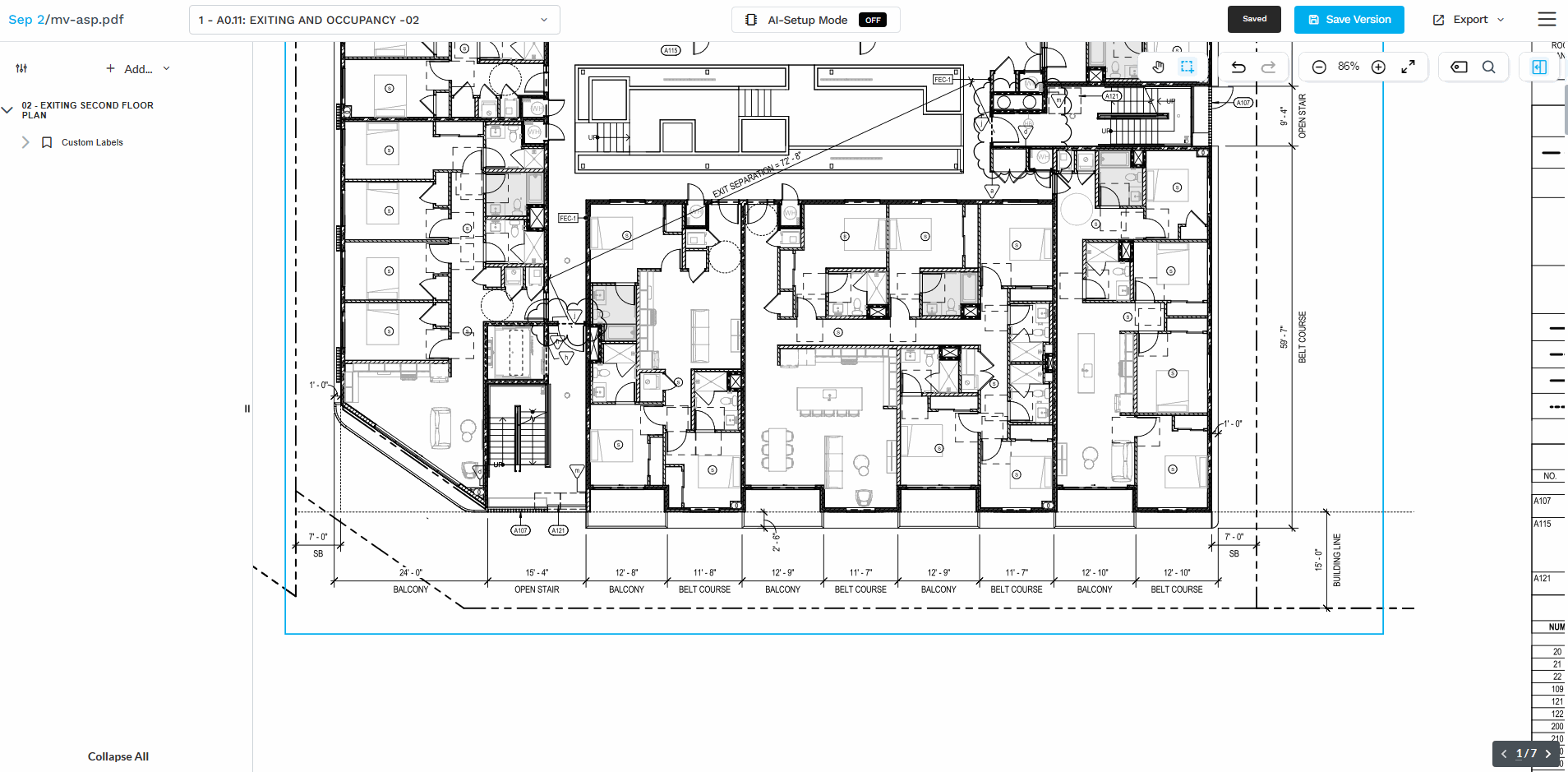

2. Add Custom Label by +Add button → Custom Labels → Add to new custom label → place custom label measurement over label on sheet
  • If there's already a custom label on the sheet, you can add a label measurement to the existing label by selecting its group
  • After adding label measurement you can change it to fit label on sheet

5 (1567)

Important:

After processing, the Custom Label will take the name of the corresponding Custom Label Template. Here's a video example:
