Workpack: Corners and Corner Detection

Corner Detection in Workpack

Workpack allows users to detect and edit corner symbols in their projects. The feature has two major use cases:

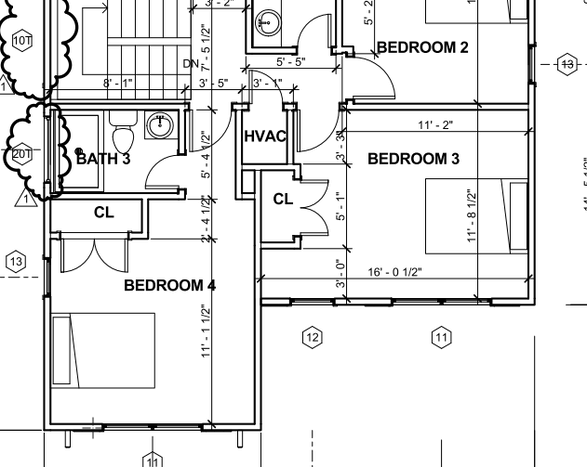

• Add Corners from scratch:

• Get corners from processing and edit them in results after

How To Set up Corner Detection for Processing

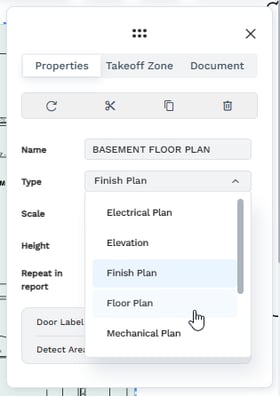

• Select either ‘Floor Plan’ or ‘Other’ type option in Properties panel of Takeoff Zone



• In Processing Confirmation dialog, Corners item can be checked on for the Takeoff Zone while Walls, Windows and/or Rooms are checked on. If none of them is checked on, Corners can’t be detected and so the item gets disabled

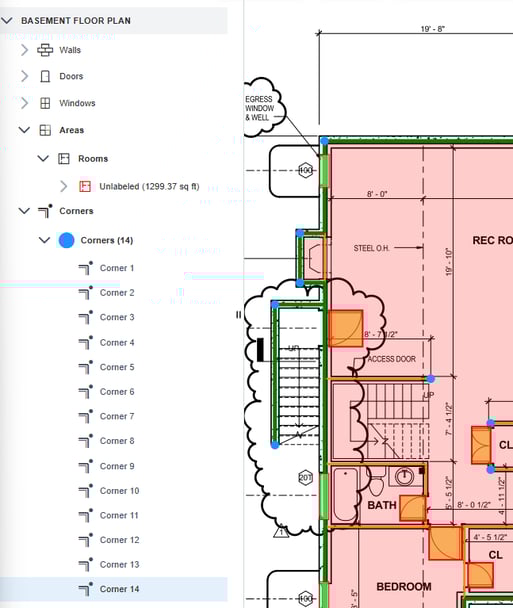

• After the processing, detected Corners appear in the Left Panel and in the Viewer: default shape is circle and default color is blue
