How to Set Up BIM360 Docs or Autodesk Construction Cloud to Access Estimator
In order to access your Project buckets in BIM360 Docs or Autodesk Construction Cloud (ACC), the Company's BIM360 Account Admin must establish a Custom Integration for the account. Once the Admin provides the necessary details, our Beck Technology Support Department will set up the application on our end, enabling Estimator to connect with BIM360 through the Autodesk Forge API.
Even though the video focuses more on ACC, the process takes you to the same Setting in the BIM360 Account Admin Setting page.
1. The first step is for the Account Admin to navigate to the Custom Integration tab under Settings. If this tab is not there then the Admin will have to contact their Autodesk Rep and ask them to Enable the Custom Integration and the Forge API.
If the Autodesk Rep is not familiar with the process then this Autodesk article also has the steps listed.

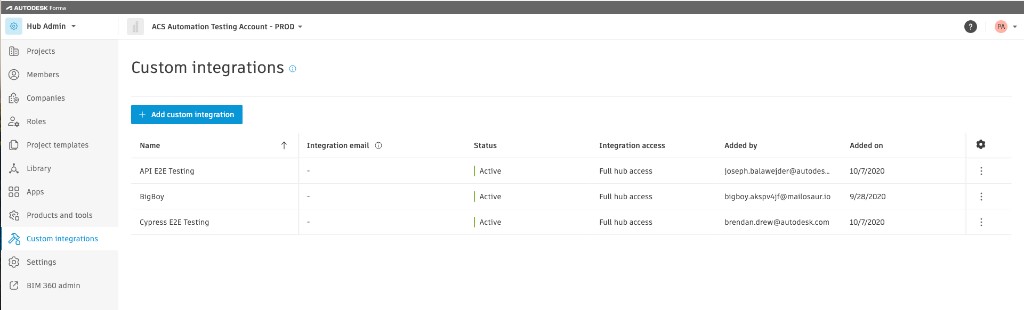

2. Next, click on the Custom Integration tab and click the Add Custom Integration button in the Forge API
3. Check the Document Management tab
4. Finally, check the Invite a Developer and add my email - support@beck-technology.com in the email field and I will fill out the necessary information Autodesk required.
Once Beck Technology is finished filling out the information, the Account Admin will then approve the Estimator app on their BIM360 account. Once that is completed, the user will see the Project hubs in Estimator Takeoff Tab when they log in or refresh.
Approving Estimator in the BIM360 account
Here are the steps to approve Estimator.

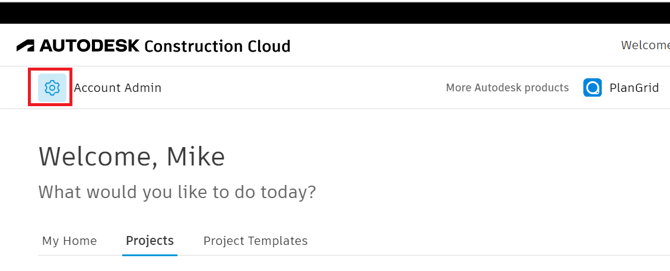

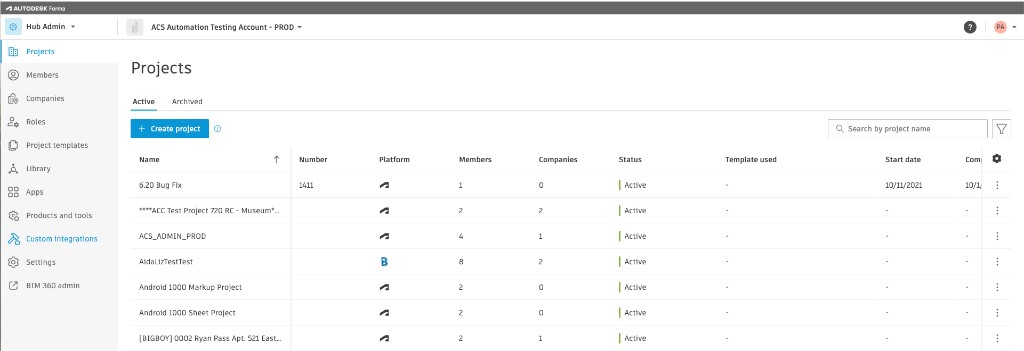

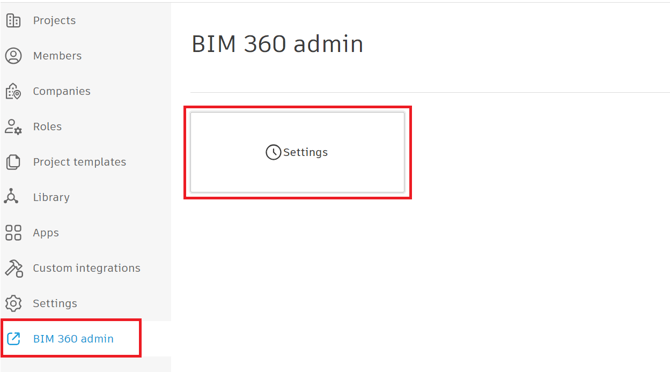

1. Log back into BIM360 > Account Admin > Settings
2. Next click on the Custom Integration tab
3. Click the Accept button to enable the application and that will allow Estimator to see the hub
