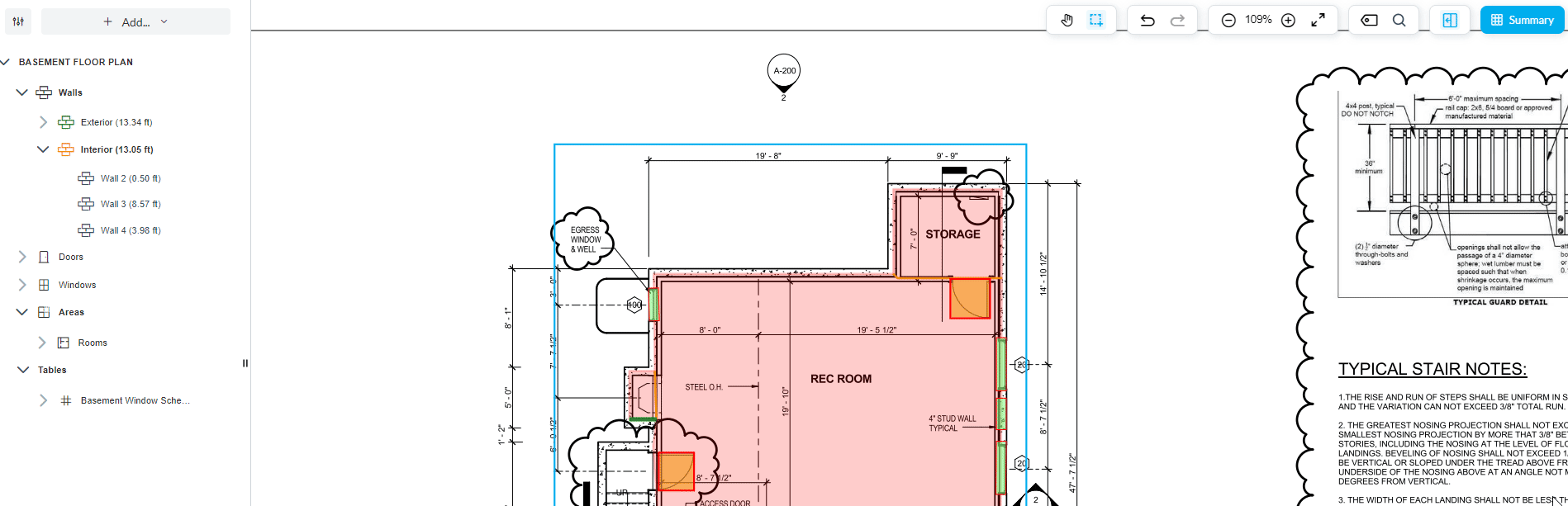

Takeoff mode serves for detailed studying and changing all types of objects (Walls, Doors, Labels of any type, Tables, etc.). User can create object in Takeoff by any of the following methods:
- Object created as result of Processing in AI-Setup Mode.
- Object added manually in Takeoff Mode
How to Add an Object
You can use any method mentioned below:

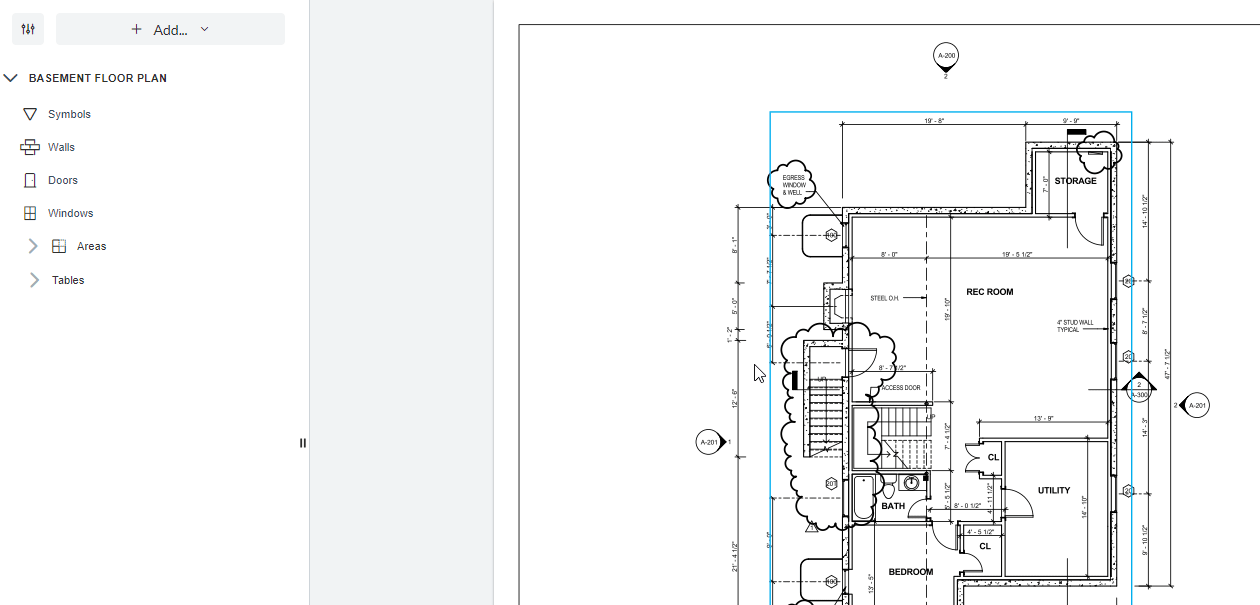

Using + Add button: Click “+ Add” and select object type you need.

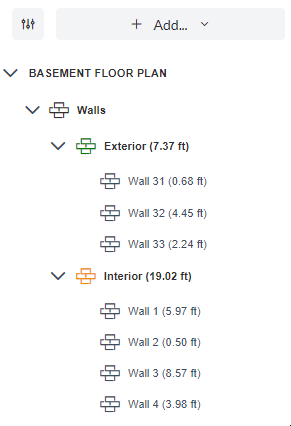

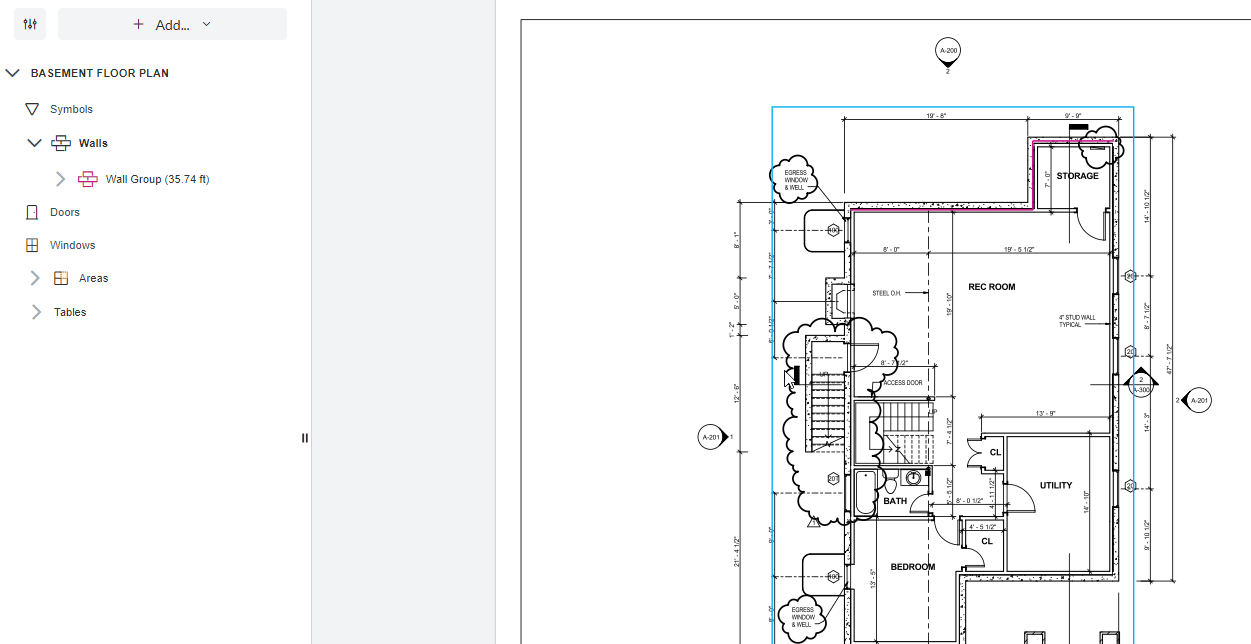

Using the Left Panel: If Group you want to add the object to is already on Left Panel, select this Group and click “+” button. Alternatively, you can select Group and click whitespace to activate Add Mode.
Copy and Paste: You can add object using copy-and-paste (use the right-click menu or press CTRL-C > CTRL-V on your keyboard).
After you add object, you can edit or delete it.
How to Edit Object

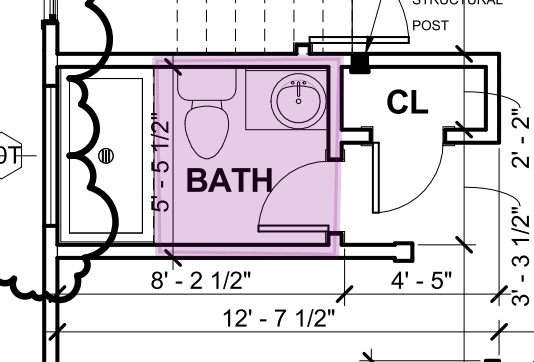

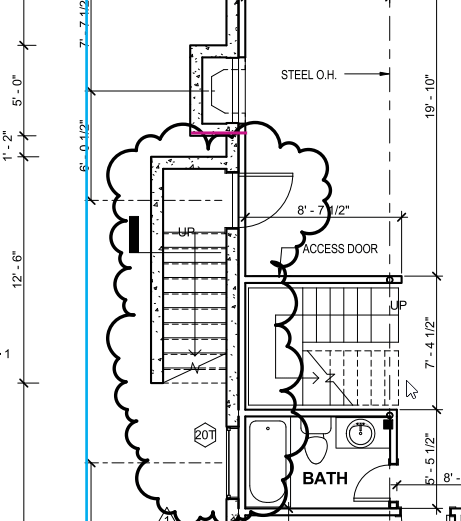

Change object position: Select object on the viewer to move, resize or rotate it.
Change object attribute: Move object to another group or rename it in the Left Panel.
Change other attributes of object in the Right Panel.
How to Delete an Object
Delete object by right-click menu on press “Delete” on keyboard.
