Annotations can be very helpful while completing takeoff and for others to review the takeoff. DESTINI Takeoff includes an Annotation tool within the top toolbar in the program.

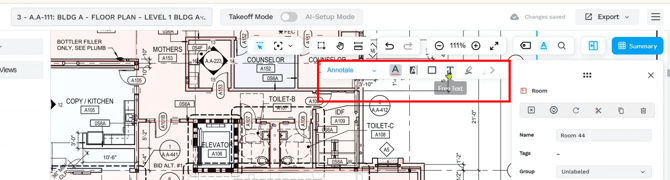

- Open the Annotation tool, Click the A icon/Annotation button on the top toolbar
-
Select Free Text, Click the T icon for Free Text

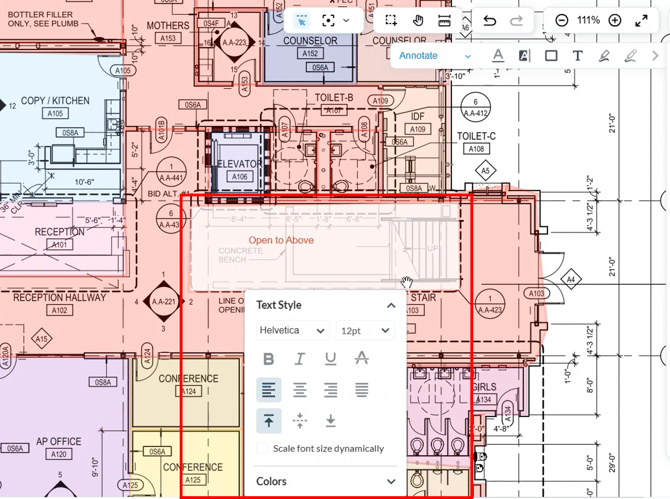

Customize the Annotation: Use the toolbar options to adjust: Font size, Color, Style, or a different type of annotation besides Free Text.
-
Add the Annotation
- Click and drag to create a text box
- Type in the relevant note
- Click Save
- Exit Annotation Mode, press Esc
-

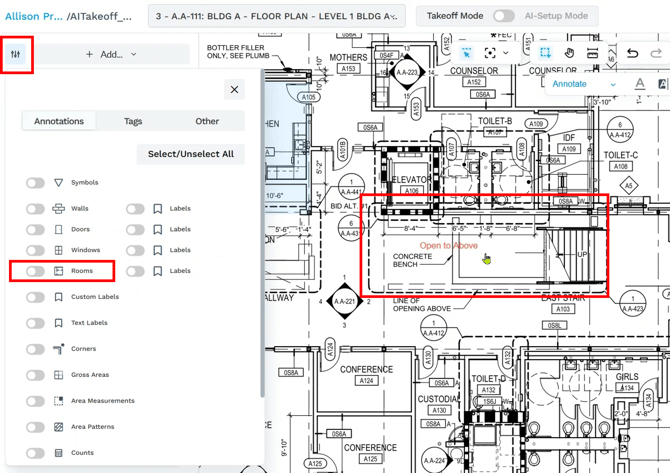

Filter for Annotations, Click on the Filter tool, click on the Annotations tab, then use the Filters to turn off takeoff and view Annotations only for clarity
