Takeoff mode lets you create, review and make changes to all types of takeoff objects (Walls, Doors, Labels of any type, Tables, etc).
You can create objects in Takeoff via any of the following methods:
- Object created as result of Processing in AI-Setup Mode.
- Object added manually in Takeoff Mode
How to Add an Object
You can use one of three methods to create a takeoff object:

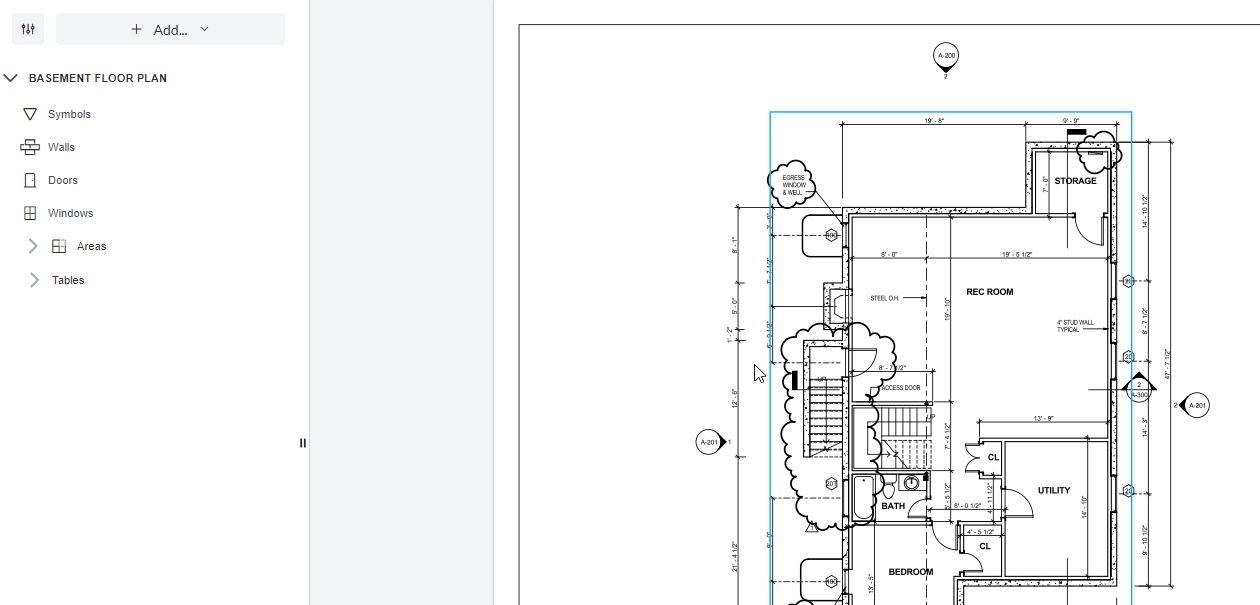

- Using + Add button: Click + Add and select object type you need.

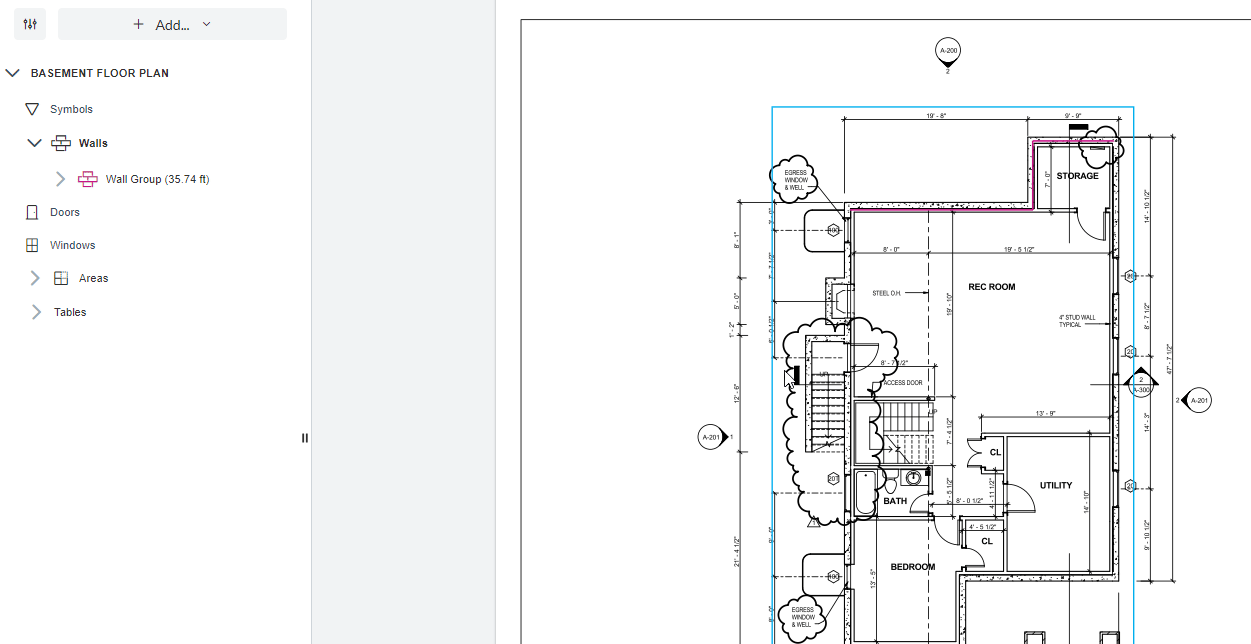

- Using the Left Panel: If the Group you want to add the object to is already on left panel, select this Group and click the + Add button. Alternatively, you can select the Group and click whitespace to activate Add Mode.

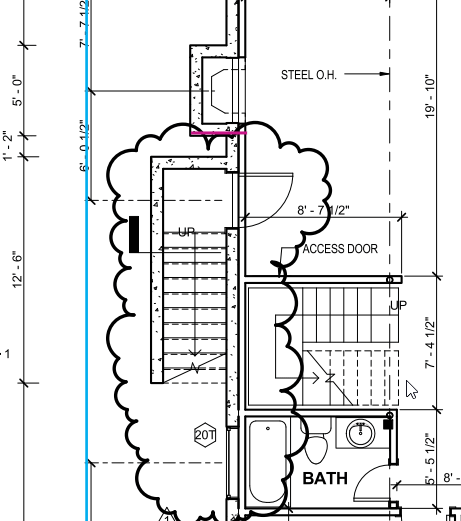

- Copy and Paste: You can add an object using copy-and-paste (use the right-click menu or press CTRL-C > CTRL-V on your keyboard).
After you add object, you can edit or delete it.
How to Edit Object

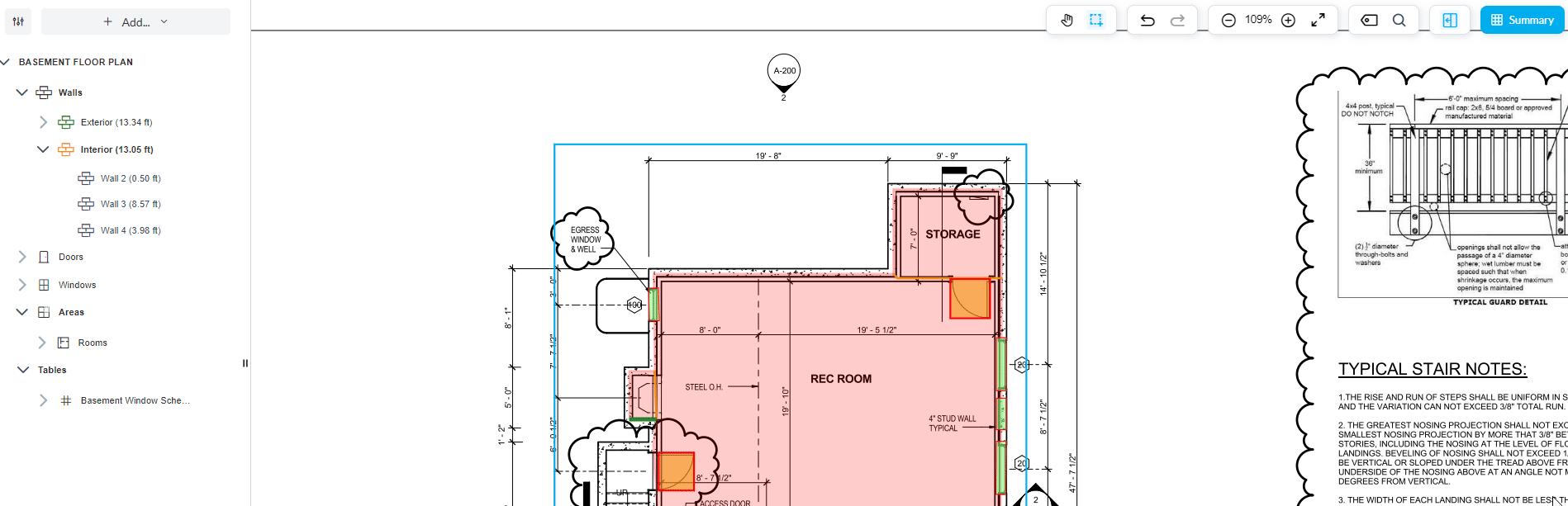

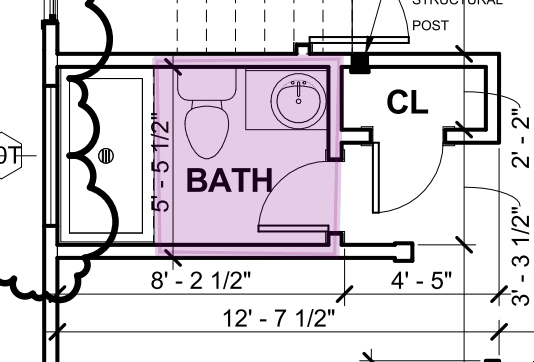

Change object position: Select object on the viewer to move, resize or rotate it.

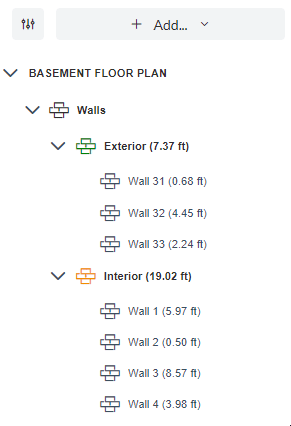

Change object attribute: Move object to another group or rename it in the left panel.
Change other attributes of the object in the right panel.
How to Delete an Object
Delete object via the right-click menu and selecting Delete.
