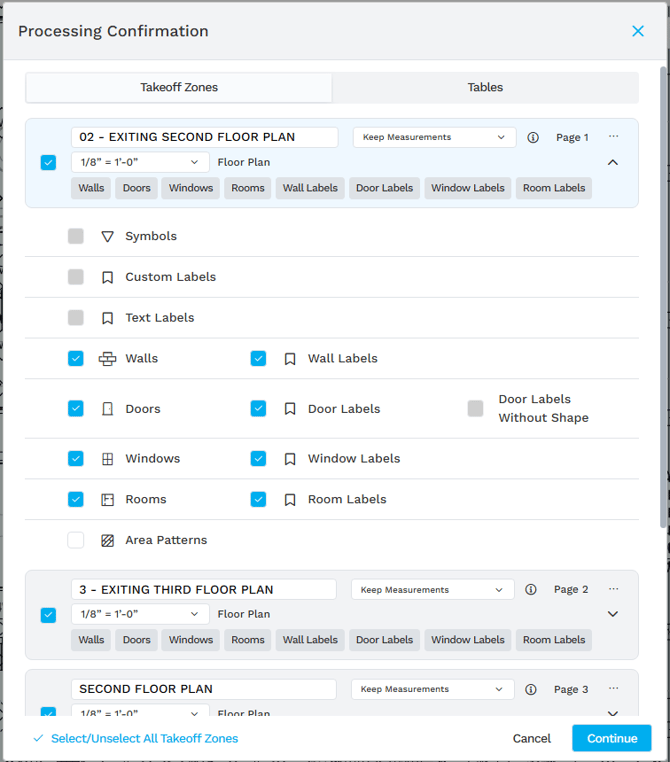

The Processing Confirmation window is opened before the start of AI processing. Its purpose is to configure various elements of processing, such as takeoff zones, measurements or tables.
.png?width=670&height=766&name=image%20(14).png)
It has two tabs; Takeoff Zones and Tables.
The Takeoff Zones tab consists of panels for individual takeoff zones, which have the following elements:
- Name of Takeoff Zone.
- Keep/Override Measurements dropdown and its tooltip icon.
- Page number.

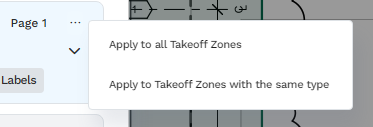

- Apply to Takeoff Zones context menu.
.png?width=670&height=228&name=image%20(15).png)
- Checkbox for takeoff zone.
- Scale dropdown.
- Floor type.
- List of active measurements to process.

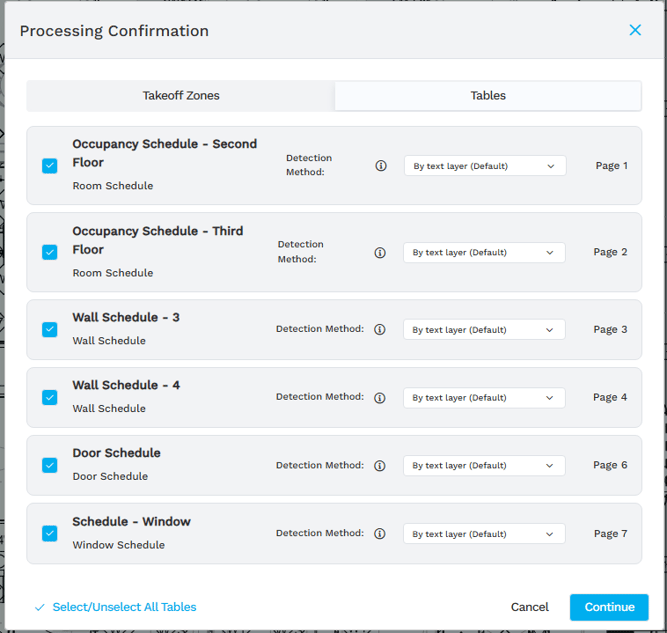

Each takeoff zone panel can be expanded to change active measurements by clicking on panel. Tables tab consists of panels for individual tables that have the following elements:
- Name of table.
- Type of table.
- Detection method dropdown and its tooltip icon.
- Page number.
.png?width=670&height=633&name=image%20(16).png)
How to Work with Processing Confirmation

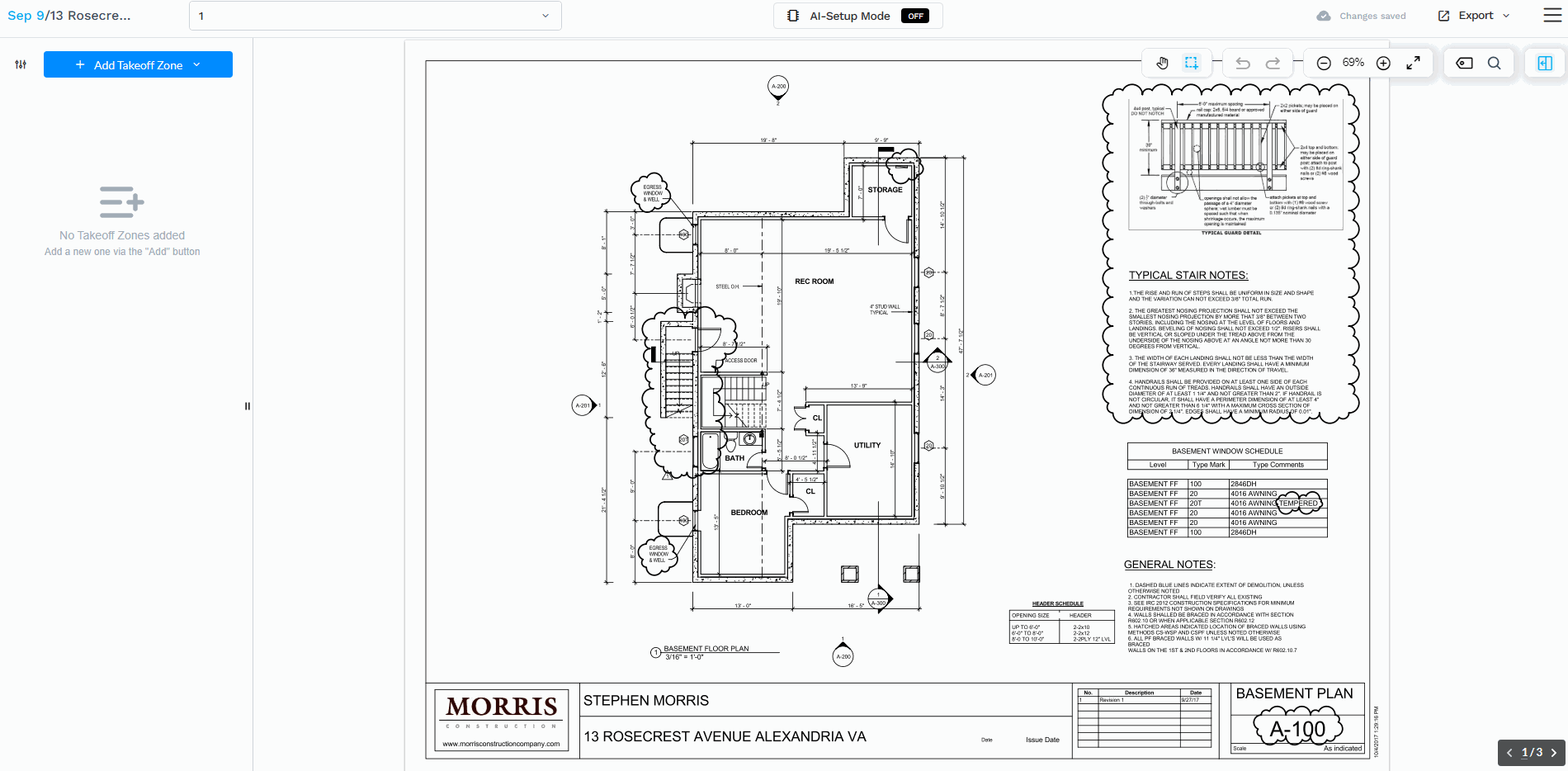

- In AI-Setup mode place a takeoff zone and a table on a sheet and click Process button in the upper-right corner.

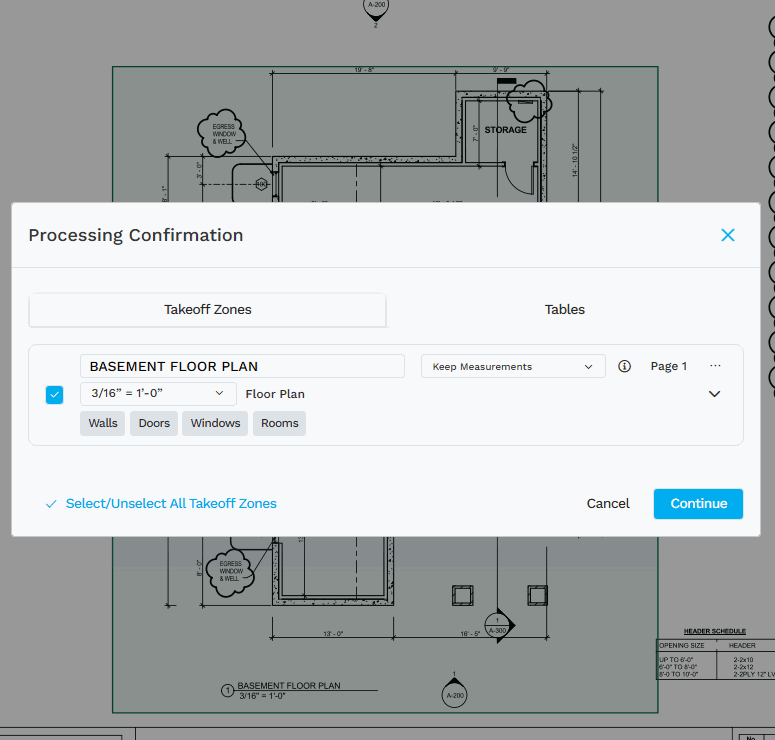

- In the Processing Confirmation window you can set the name and scale.

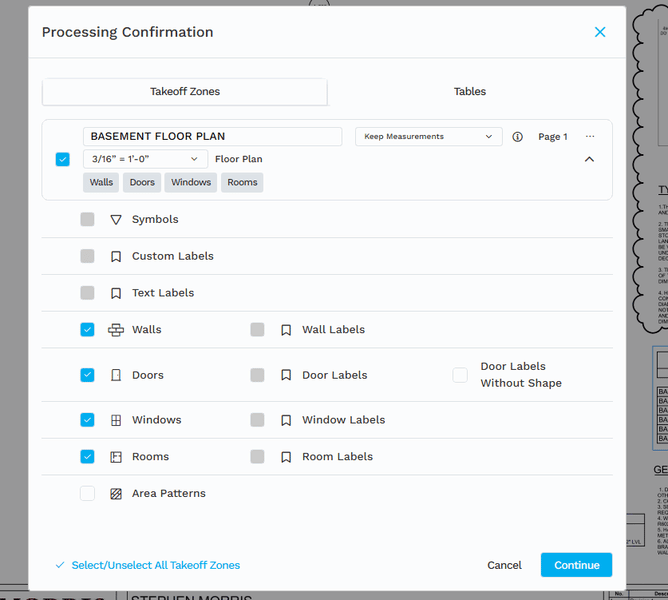

- Next, set which takeoff types will be processed.
- To change table settings, go to Tables tab.
- Lastly, click Continue to begin AI-Processing
