Workpack: Corners and Corner Detection

Corner Detection in Workpack

Workpack allows users to detect and edit corner symbols in their projects. The feature has two main use cases:
  • Add Corners from scratch:

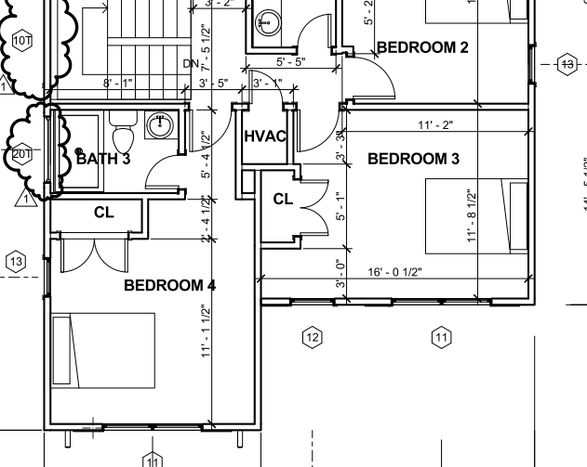

corners-add-scratch

  • Get corners from processing and edit them in the results afterwards.

How To Set up Corner Detection for Processing

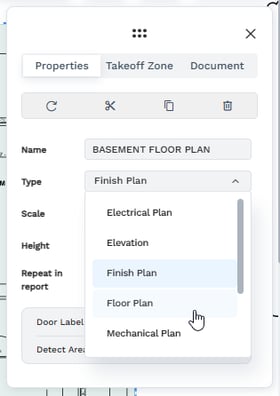

  • Select either ‘Floor Plan’ or ‘Other’ type option in the Properties panel of the Takeoff Zone.

    image (25)

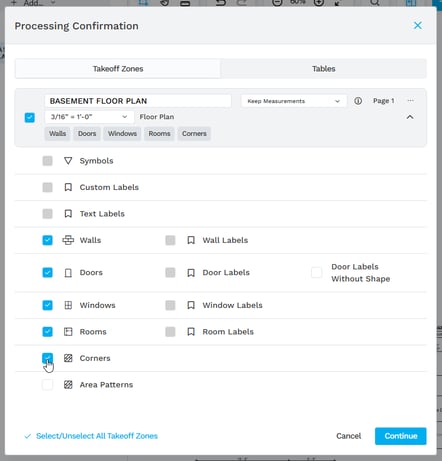

  • In the Processing Confirmation dialog, the Corners item can only be checked for the Takeoff Zone when Walls, Windows and/or Rooms are checked on. If none of them are checked on, Corners can’t be detected and so the item gets disabled.

    image (26)

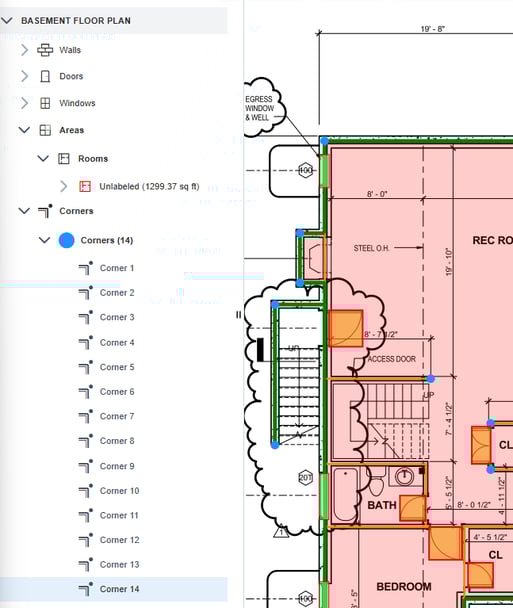

  • After processing, the detected Corners appear in the left panel and in the Viewer - the default shape is circle and default color is blue, as shown below:

image (27)
